Fireye UV2 Series Ultra Violet Flame Scanner

Fireye UV2 Series Ultra Violet Flame Scanner
Images for general purposes only. Actual may be different than depicted.
Fireye UV2 Series Ultra Violet Flame Scanner

Fireye UV2 Series Ultra Violet Flame Scanner

SKU: UV2
Rating:
Quantity Price Stock
6
Usually Ships 1 week
$199.80     /ea
6
0
$0.00
0
$0.00
0
UV2

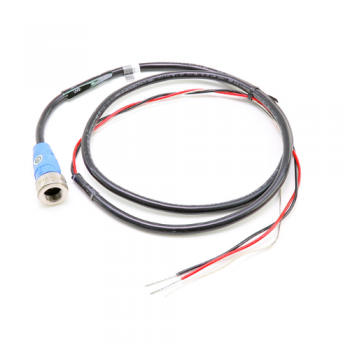

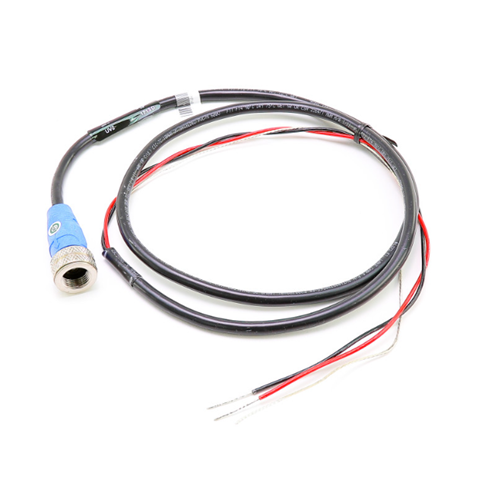

The Fireye UV2 Series is an ultraviolet flame scanner with a 3/8” NPT connection and 36” (915mm) shielded lead. The scanner has an operating voltage of 560 VAC at 120V (230V), 50/60 Hz.  Also, it comes with a 96" flexible cable that connects the scanner to the control.

The UV2 scanner is used on Fireye Flame Safeguard and Burner Management Controls for flame detection from waste gases, fuel gases, light oil (ex. No.2 oil), and heavy oils.  The UV scanner together with the associated amplifier module is considered a non-self-checking UV system on which it should be only applied to burners that cycle often to be able for the safety checking circuit to be exercised.

When installing, the UV2 can be wired with either red or black wire (18 AWG) to S1 or S2 terminal of Fireye flame safeguard control.

The UV2 is suitable only with the following Fireye Flame Safeguard and Burner Management Control Models:

Nexus D Series FlameWorx BurnerLogix
NX3000, NX3100 NX4000, NX4100 Use with 72DUV1 Amplifier MBUV-300D,
MBUV-310D
YB110UV,
YB230UV

MB-2 Series PFM Adaptor Kits MircoM & M-Series II Fireye Flame-Monitor
Use with 61-3359
UV Amplifier
PFM2UV,
PFM3UV
MAUV1, MAUV1T
MEUV1, MEUV4
Use with EUV1
Amplifier Card

NOTE:  Professional/Qualified technician must be the only one allowed to install, troubleshoot, and service.
Frequency 50/60 Hz
Humidity 85% RH maximum non-condensing
Operating Voltage (S1-S2): 560 VAC @120V (230V)
Operating Temperature Limits -40° F (-40° C) to 200° F (94° C)
Cable Length 96"
Connection Size 3/8" NPT
Lead Length Size 36" (915 mm) shielded
Approvals UL Listed and FM Approved
