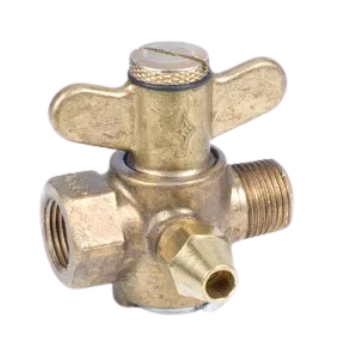

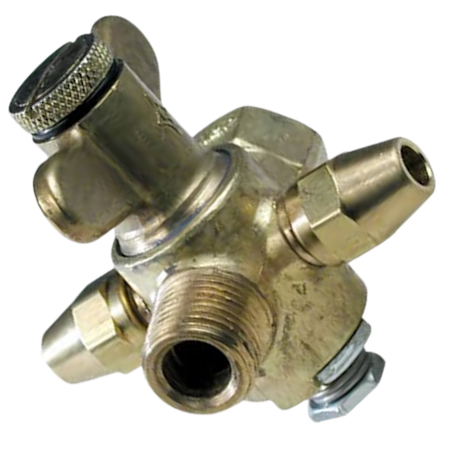

The 3TSV‑FM is a forged-brass, 3/8" NPT male-to-female throttling gas valve with FM approval, engineered to provide safety and adjustable flow control in industrial gas-fired furnaces, dryers, ovens, and boilers. It has a capacity of 175,000 BTU/hr, operates between 32°F and 125°F, and is rated for up to 1 psi (6.9 kPa) service. The valve features a rugged brass body and plug, and includes 1/4" SAE nuts for easy integration.
This manually operated valve is designed to prevent fuel explosions and provide reliable operation in demanding industrial settings. It features a slotted throttle adjustment continuously adjustable from full open to full closed.
| Temperature | 32 - 125°F |
|---|---|
| Capacity | 175,000 BTU/Hr |
| Approvals | Factory Mutual |
| Body and Lug Materials | Forged Brass |
| Maximum Operating Pressure | 1 PSI ( 6.9 kPa ) |
| Nut Size | 1/4" SAE |

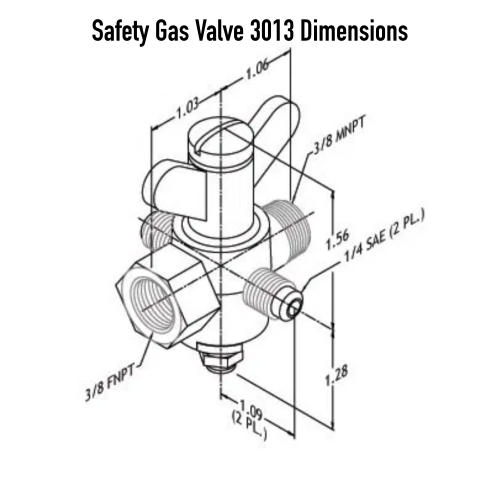

| Connection Size | 3/8" NPT Male x Female |
Download Product Information:
Ordan Thermal 3TSV-FM Brass Throttling Gas Valve Technical Datasheet
