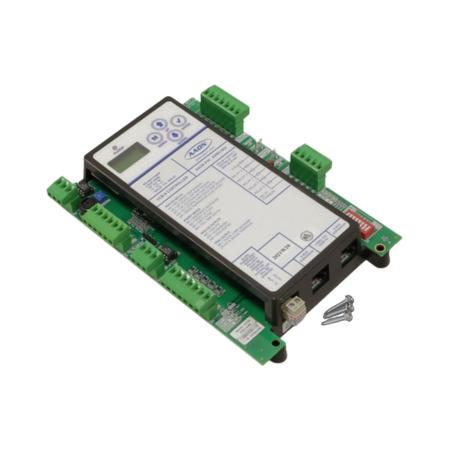

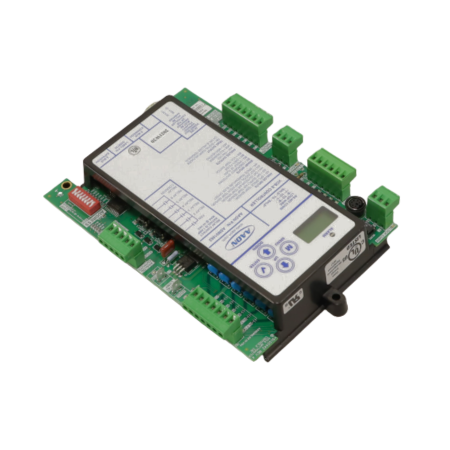

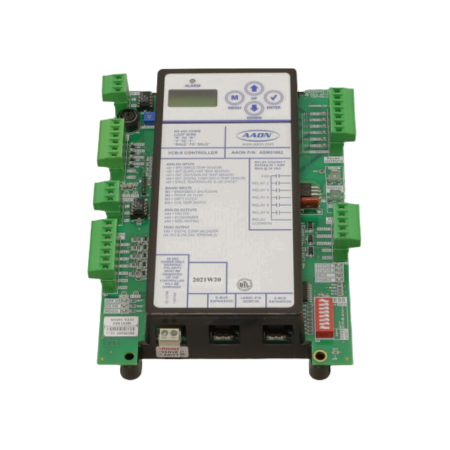

The Aaon ASM01862 is a VCB-X control module housed in a plastic with an integrated BACnet® display, operating at 18–30 VAC. It features a 2x8 LCD character display and four navigation buttons for viewing system status, alarms, and BACnet® configuration. UL Recognized for safety and compliance.
This includes 5 analog inputs, 3 analog outputs, 4 binary inputs, 6 relay outputs, and 1 triac output. Also has an onboard BACnet® MS/TP port for seamless network integration. Itsupports Constant Volume, VAV, Make-Up Air, and Single Zone VAV applications, with configurable options for VAV Cooling and either CAV or VAV Heating.
The ASM01862 is a direct replacement for Aaon V28940 controller. It is intended for indoor installations with environmental conditions ranging from -30°F to 150°F and relative humidity not exceeding 95% (non-condensing).
| Operating Power | 18-30 VAC |
|---|---|
| Operating Temperature | -30 to 150°F |
| Operating Humidity Range | 0 to 95% RH Non-condensing |
| Power Consumption | 8 VA Maximum |
| Communications | E-BUS, BACnet® MS/TP |
| Outputs | 3 Analog, 6 Relay, Digital Compressor Triac |
| Inputs | 5 Analog, 4 Binary |
| Display Type | BACnet Display |
| Approval | UL Recognized |
Download Product Information:
Q & A: Ask the Questions, share answers
Do you have questions about this product?
$ USD
CAD
-18-30-VAC.png "Aaon ASM01862 Control Module with BACnet Display (VCB-X) 18-30 VAC")
-18-30-VAC.png "Aaon ASM01862 Control Module with BACnet Display (VCB-X)")
-18-30-VAC-1.png "Aaon ASM01862 Control Module with BACnet Display (VCB-X) 18-30 VAC")

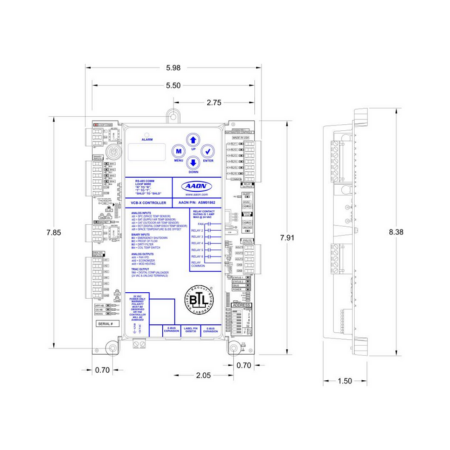

-18-30-VAC-2.png "Aaon ASM01862 Control Module with BACnet Display (VCB-X) 18-30 VAC Dimensions")
