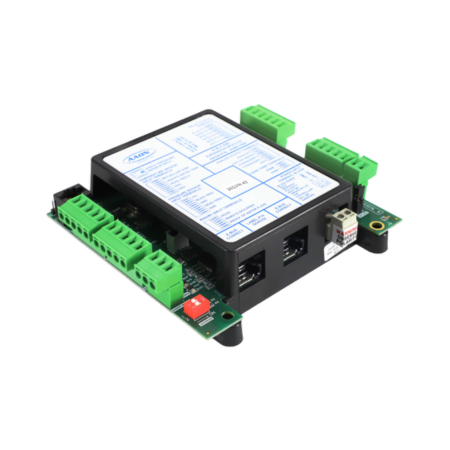

The Aaon ASM01864 (VCB-X EM-1) is an expansion board/module that operates at 1A and 24 VAC. Housed in a durable plastic enclosure, it mounts easily using three integrated holes on the base. UL Recognized for safety and compliance.

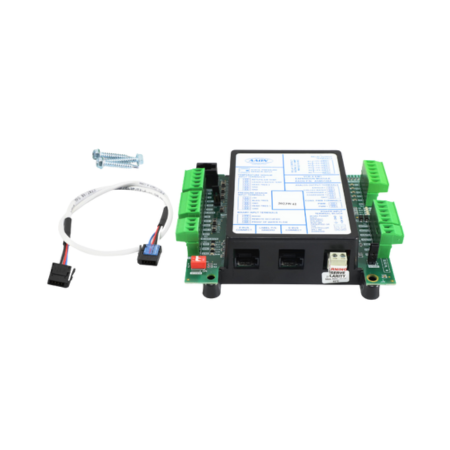

This expands system capabilities by adding 6 analog inputs, 3 binary inputs, 5 relay outputs, and 4 analog outputs, ideal for advanced HVAC control applications. It connects directly to the VCB-X Controller via an EBC E-BUS cable for seamless integration.
This module is a direct replacement for the Aaon V13010 expansion board. It is designed for indoor installation in environments with ambient temperatures ranging from -30°F to 150°F and relative humidity not exceeding 95% (non-condensing).
| Communications | E-BUS |
|---|---|
| Voltage | 24 VAC |
| Operating Temperature Range | -30 to 150°F |
| Operating Humidity Range | 0 to 95% RH Non-condensing |
| Power Consumption | 5 VA Maximum |
| Inputs | 3 Binary, 6 Analog |
| Outputs | 5 Relay, 4 Analog |

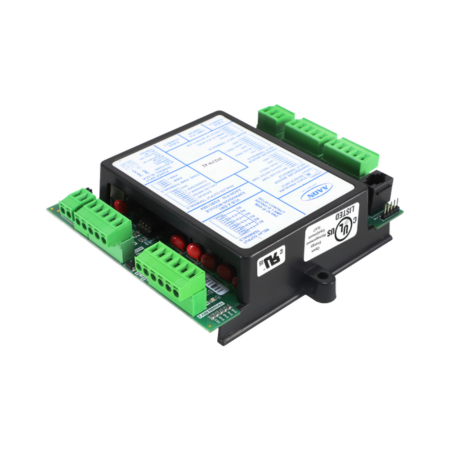

| Approval | UL Recognized |
| Amperage | 1A |
| Maximum Ambient Temperature | 60°C |
Download Product Information:
Q & A: Ask the Questions, share answers
Do you have questions about this product?
$ USD
CAD
.png "Aaon ASM01864 Expansion Board (VCB-X EM-1) 1A 24VAC")
.png "Aaon ASM01864 Expansion Board (VCB-X EM-1)")
-1.png "Aaon ASM01864 Expansion Board (VCB-X EM-1) 1A")
-2.png "Aaon ASM01864 Expansion Board (VCB-X EM-1) 1A 24VAC")

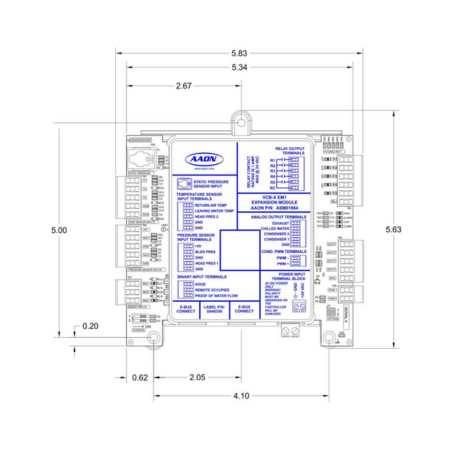

-3.png "Aaon ASM01864 Expansion Board (VCB-X EM-1) 1A 24VAC Dimensions")
