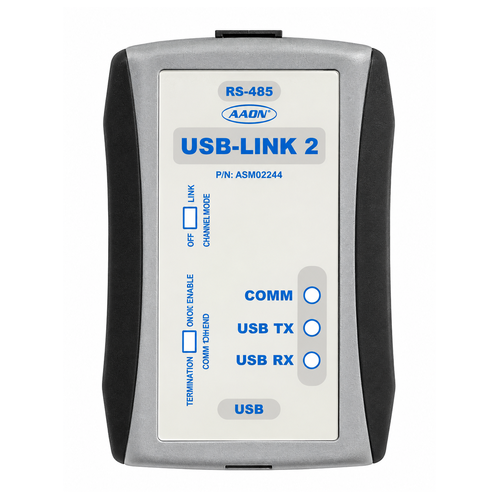

The Aaon ASM02244 USB-Link Kit is an HVAC diagnostic and communication interface designed to connect Windows-based computers with compatible AAON control systems for configuration, troubleshooting, system monitoring, and maintenance.

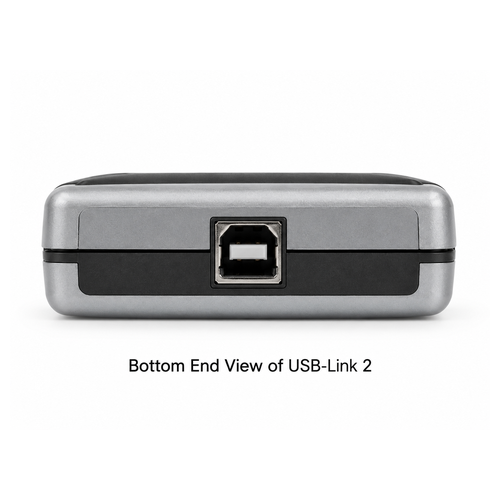

Using USB-to-RS-485 communication, the USB-Link 2 adapter provides a convenient connection between service software and HVAC controllers.

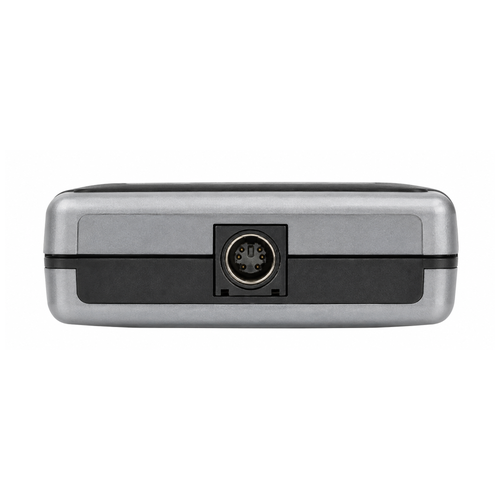

The kit includes a USB-Link 2 interface module (T38010), 6-foot USB cable, 7-foot mini-DIN communication cable, terminal block adapters, modular jack adapters, and USB driver media.  These connection options support technicians servicing compatible AAON controllers with different communication interfaces, including mini-DIN and terminal block connections.

Designed for HVAC service professionals, the ASM02244 simplifies computer-to-controller connectivity and supports efficient system diagnostics, controller configuration, and routine maintenance.

Order online for AAON HVAC control system servicing and communication needs.

Aaon ASM02244 directly replaces OE366 USB Link

Frequently Asked Questions

• What is the AAON ASM02244 OE366 USB Link 2 Kit used for?
  The AAON ASM02244 OE366 USB Link 2 Kit is used to connect a laptop computer to compatible AAON HVAC control systems for setup, monitoring, diagnostics, and service work.

• What software is used with the AAON ASM02244 USB Link?
  The ASM02244 USB Link 2 Kit is used with AAON Prism 2 software for communicating with compatible AAON control systems.

• Does the AAON ASM02244 connect directly to a laptop?
  Yes. The USB Link connects to a laptop through a USB connection and interfaces with the HVAC control system through the included communication cables and adapters.

• What can technicians do with the AAON OE366 USB Link?
  Technicians can use the OE366 USB Link to view controller status, monitor system operation, adjust setpoints, configure controls, and assist with troubleshooting.

• Is the AAON ASM02244 portable?
  Yes. The ASM02244 USB Link 2 Kit is a portable service tool designed for field diagnostics, commissioning, and maintenance work.

• What is included with the AAON ASM02244 USB Link 2 Kit?
  The kit is commonly listed as including the USB Link 2 device, USB cable, modular connection cable, mini-DIN terminal adapters, and Prism 2 software or documentation on a USB flash drive.

• Is the ASM02244 compatible with all AAON units?
  Compatibility depends on the AAON control system and software requirements. Confirm compatibility with the specific unit model, controller, or project documentation before purchase.

• Can the ASM02244 be used for rooftop unit service?
  Yes. The USB Link 2 Kit is commonly used for AAON rooftop unit controls, mechanical room diagnostics, commissioning, and field service work when the equipment uses compatible AAON controls.

• Do I need Prism 2 software to use this USB Link?
  Yes. A laptop with compatible AAON Prism 2 software installed is required to use the USB Link for communication and configuration tasks.
