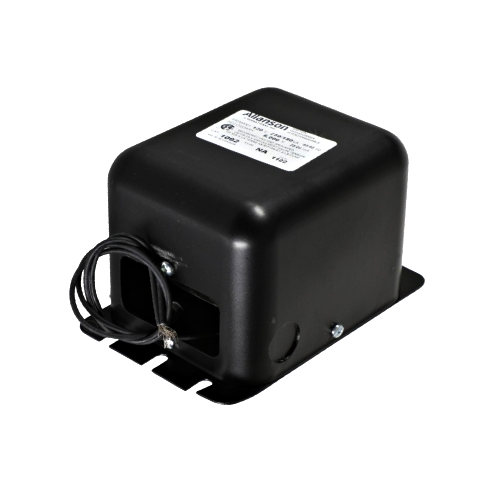

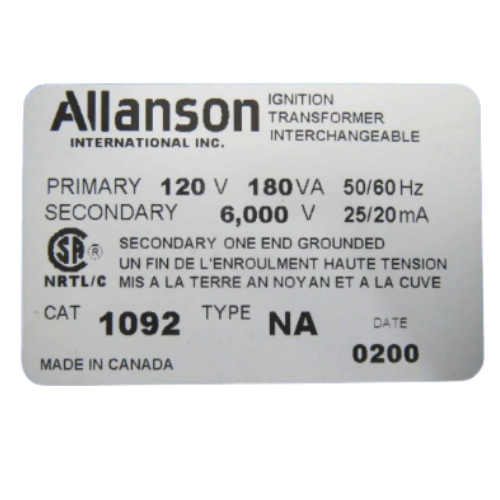

The Allanson 1092-NA is a single-pole ferromagnetic ignition transformer used for North American type Gas Burner. The primary voltage is 120Vac and 6000Vac for the second voltage. Operates 25/20mA current with 50/60Hz input frequency.

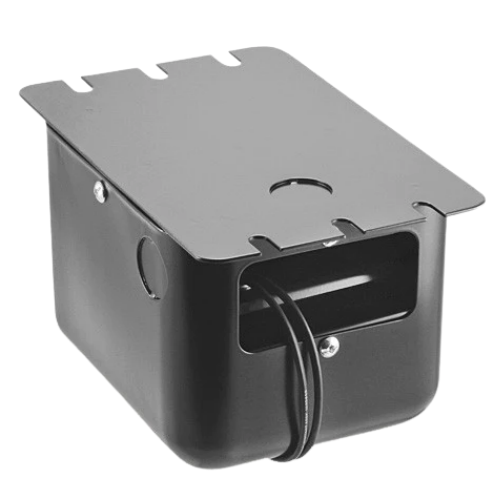

The 1092-NA has one end ground and is enclosed in a junction box. This transformer is applicable for residential, commercial, and industries that utilize gas equipment. It is constructed to be reliable, safe, provide constant duty, and quiet operation.
| Input Voltage | 120Vac |
|---|---|
| Secondary Voltage | 6000Vac |
| Secondary Short Circuit Current | 25/20mA |
| Input Frequency | 50/60Hz |
| Loading Air Gap | 1/16”-1/8" |
| Operating Relative Humidity | 90% |
| Operating Temperature | -30C to +40C |
| Junction Box | Internal |
| Hv Terminal | Rajah Connector |
| Approval | CSA |
