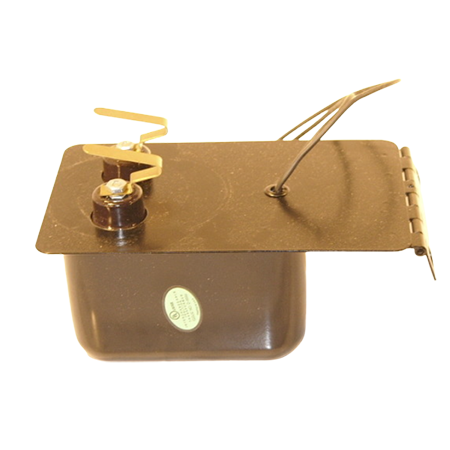

The 2721-448 is an ignition transformer that has a power rating of 120V primary voltage and 10,000V secondary voltage. It has a -40 to 80°C storage temperature, a -30 to 40°C operating temperature, and 90% operating relative humidity. CSA-certified.
The ignition transformer is suitable for commercial, residential, and industrial oil applications. The unit is constructed to provide a consistent operation that is ideal as an excellent ignition source.
The 2721-448 is quick and easy to install with buss bar contact HV terminals. It is designed with single porcelain and high-temperature wire that creates cooler, silent, and safe operation for all types of burners.
|Secondary Short Circuit Current||23 mA|
|Storage Temperature||-40 to 80°C|
|Operating Temperature||-30 to 40°C|
|Operating Relative Humidity||90%|
Download Product Information:
Allanson 2721-448 Ignition Transformer Catalog
