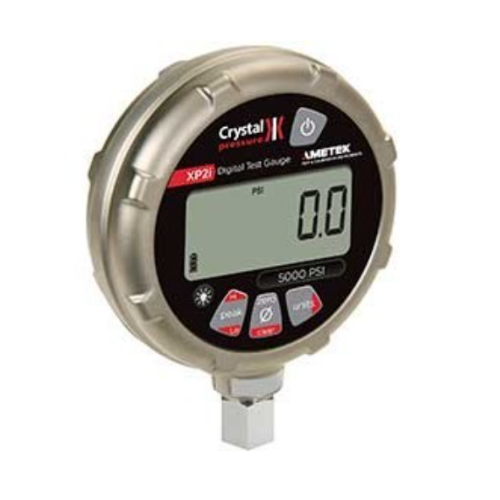

Ametek 30PSIXP2I Crystal XP2i Digital Pressure Gauge 0-30psi

Ametek 30PSIXP2I Crystal XP2i Digital Pressure Gauge 0-30psi
Images for general purposes only. Actual may be different than depicted.
Ametek 30PSIXP2I Crystal XP2i Digital Pressure Gauge 0-30psi

Ametek 30PSIXP2I Crystal XP2i Digital Pressure Gauge 0-30psi

SKU: 30PSIXP2I
Rating:
Quantity Price Stock
Usually Ships 2 - 5 Days
Usually Ships 2 - 5 Days
$1,467.27     /ea
Usually Ships 2 - 5 Days
0
$0.00
0
$0.00
0
30PSIXP2I
Ametek 30PSIXP2I Crystal XP2i Digital Pressure Gauge 0-30psi

The 30PSIXP2I includes the following:
  • Digital Pressure Gauge
  • Velcro Strap
  • DB9 Cover
  • CPF Connection Fitting
  • 3 x AA Batteries
  • ISO 17025 Accredited Calibration Certificate, NIST Traceable
  • Online Manual
Rugged and reliable, this digital pressure gauge features a range of 0 to 30 psi and 3.0 x overpressure. Obtain accurate readings with this gauge that comes with a bottom-mount ¼" NPT pressure fitting and an aluminum carrying case.  Reliable at any temperature without compromising accuracy.


Features

  • Submersible
  • Shock resistant
  • Marine-grade construction
  • Easy to calculate 4:1 calibration ratios
  • Record up to 32000 data points
  • Easy to use
  • Output to pre-formatted Microsoft Excel spreadsheets
  • Change logging parameters directly from the keypad
  • Install on additional computers at no extra cost
  • Extended battery life for long-term recordings

Applications

  • Pipeline leak testing
  • Wellhead monitoring
  • Chart recorder replacement
  • Diagnostics–capture intermittent or transient events and many more
Overpressure 3.0 x
Temperature Range -10 to 50C (14 to 122F)
Adapter Type NPT
Accuracy 0.1% of reading
Location of Connection Bottom
Housing Die Cast Aluminum
Rating IP66 & IP67
