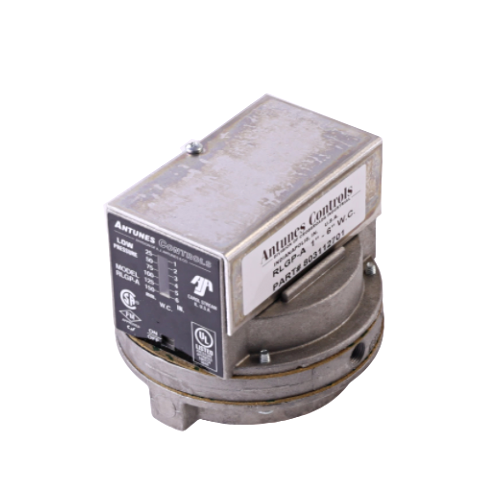

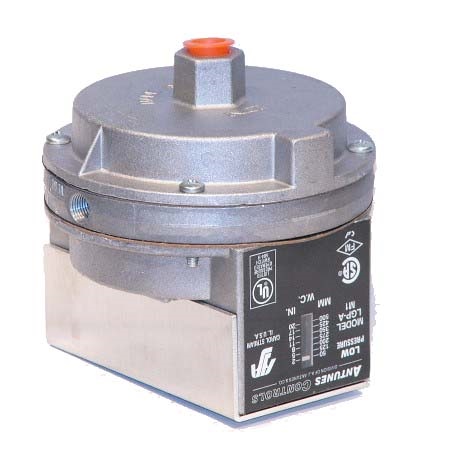

Antunes 803112701 RLGP-A Low Gas Switch 1-6" for control and monitoring gas pressure.
Antunes Gas Pressure Switches are adjustable within its range as shown on the range scale located on the front of the unit. The latch position in the reset models, and the lever indicator position in the recycle models, show whether the switch is on or off.
High pressure and Low-pressure range single gas switches and double switch High-Low combination switches are available. The pressure range varies from a 1" water column to 50" water column.
| Vent Connection Size | 1/8" |
|---|---|
| Low Pressure Gas Inlet | 1/4" |
| Gas Pressure Range | 1-6" W.C |
| Connection Type | NPT |
| Approvals | UL, CSA, FM |
Download Product Information:
Antunes 803112701 Low Gas Pressure Switch Installation Guide
Antunes 803112701 Low Gas Pressure Switch Technical Datasheet
