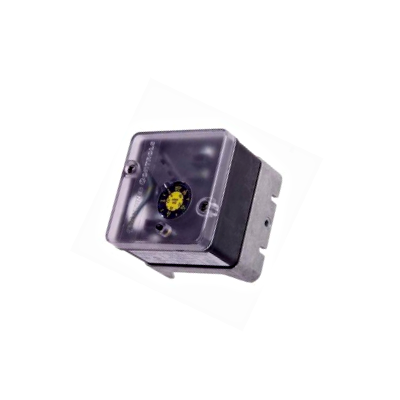

The Antunes 8101111202 is an adjustable gas high-pressure switch. The valve has a 1/4" female threaded connection and a manual reset button. Acceptable operating pressure ranges from 2" to 20" w.c. and the maximum surge pressure rating is 15psi. The switch operates at 125/250Vac.
The pressure switch is designed to be cost-effective, compact, accurate performance, and mountable to any modular valve body
| Connection Size | 1/4" |
|---|---|
| Connection Type | Female Threaded |
| Operating Pressure Range | 2 - 20" W.C |
| Maximum Surge Pressure Rating | 15psi |
| Differential Pressure Rating | 5 -50mbar/W.C |
| Contact Rating | 125/250VAC, 10amp, 1/3hp |
| Operating Temperature | -40 - 140 Degrees F |
| Approval | UL (Canada and US), CE, FM |
