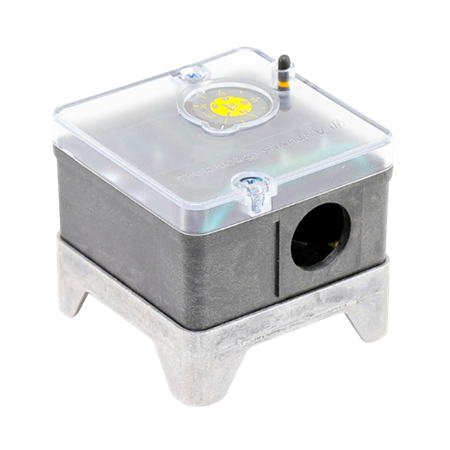

The Antunes 8103116202 is a low-range gas pressure switch with a plastic enclosure and a die-cast aluminum inlet base. The switch has a ¼” NPT gas inlet at the standard base and a pressure range scale of 1”-20” W.C.
The single gas switch function is to cut off the electrical circuit when there's a drop in the set pressure. The unit features a manual reset button with a yellow ring. The ring's position indicates if the reset button is on or off. The yellow ring above the cover means OFF and it is ON if below the cover. Also, the pressure setting can be easily adjusted by turning the range scale knob clockwise to increase and counterclockwise to decrease.
This is a safety device for gas monitoring on heating or combustion systems. Easy to mount on any position, either vertically or horizontally.
The 8103116202 can be used as a replacement for Siemens QPL31.050M00 and Honeywell C6097A3012 Pressure Switch.
Available LGP-G optional accessories:
| Gas Inlet | 1/4" NPT |
|---|---|
| Adjustable Operating Pressure | 1" - 20" W.C |
| Maximum Surge Pressure | 15 PSIG |
| Operating Temperature | -40F to 140F (-40C to 60C) |
| Inlet Base Material | Die-Cast Aluminum |
| Approval | FM, UL Listed |
