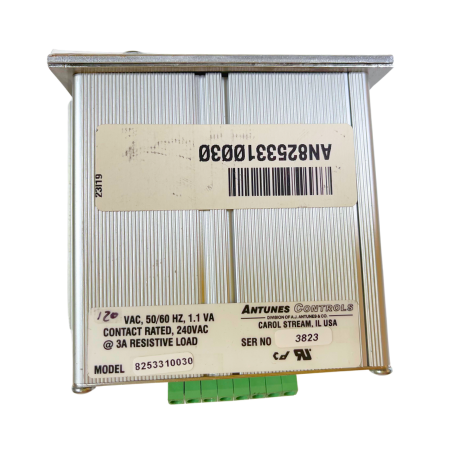

The 8253310030 is a temperature controller that features a 3-digit LED digital display and operates at 120V, 1.1VA, 3A, & 50/60 Hz. It has a 50 to 940°F (10 to 530°C) temperature range and 1% accuracy. UL-recognized.

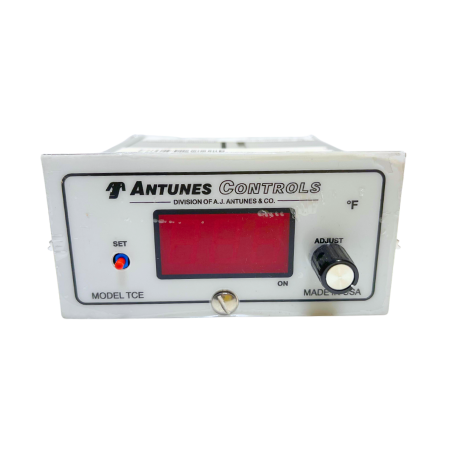

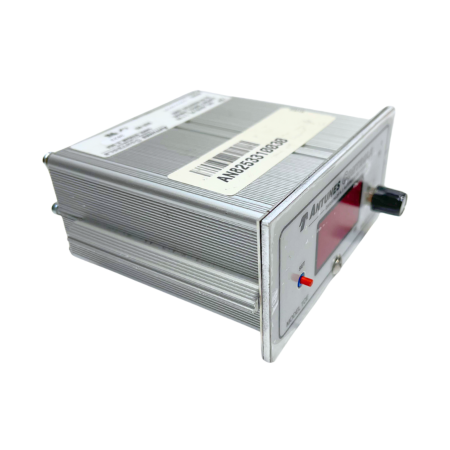

The temperature controller is designed with an anodized aluminum casing providing excellent durability. The unit's setpoint is viewed by pushing the set button and can be adjusted by turning the external knob clockwise to increase and counterclockwise to decrease.

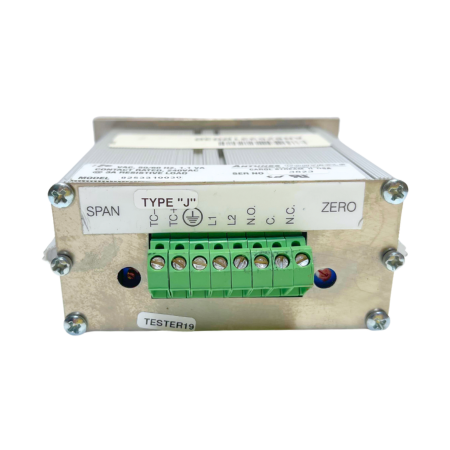

The 8253310030 is easy to install with screw terminal connections with a 1/8" DIN panel mounting. It can also be used with a type J thermocouple.
| Voltage | 120V |
|---|---|
| Temperature Range | 50 to 940°F (10 to 530°C) |
| Power Consumption | 1.1VA |
| Amperage | 3A |
| Frequency | 50/60 Hz |
| Enclosure Material | Anodized Aluminum |
| Accuracy | 1% Full Scale ± 1 LSD |
| Ambient Operating Temperature | 30 to 140ºF (-35 to 60ºC) |
| Connections | Screw Terminals |
| Display | 3 Digit LED (0.56” High) |
Download Product Information:
By ENOS
from HIRAM OH
Yes, I would recommend this product to a friend or co-worker
Was told by OEM manufacturer product was not available googled the product and found Industrial Stores which had temperature control in stock for that I give a 10
