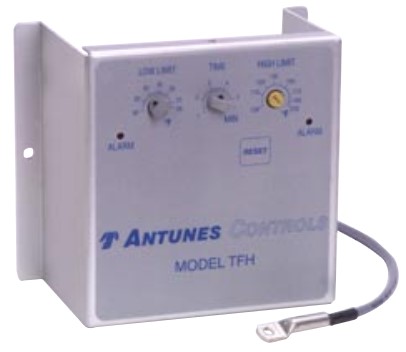

Antunes Temperature Controller Timer High Limit with Manual Reset
Antunes Controls model TFH is typically used in air make up equipment and it incorporates a temperature monitor, delay timer, and high limit controller into one compact design.
The low limit monitors the temperature to the desired setpoint which is adjustable from 30-65°F. If the temperature is not obtained by the desired time setting, which is adjustable from
1-8.5 minutes the TFH will shut the system down. The high limit setting will shut the system down if the set point temperature is exceeded.
Features:
| Sensor Type | 100K Thermistor (Dual) - Length (15 ft.) |
|---|---|
| Accuracy | +/-3ºF of Set Point |
| Power Input | 24 Vac, 120 Vac |
| Control Operation | Low Limit - Closes on Rise ; High Limit - Opens on Rise |
| Output Ratings | Low Limit - 8 Amp SPDT Relay ; High Limit - 8 Amp SPST Relay (Resistive Load) |
| Adjustable Temperature RAnge | Low Limit: 30º to +65ºF , High Limit: 100º to +220ºF |
| Adjustable Time Delay Range | 1- 8.5 Minutes |
| Ambient Operating Temperature | -30º to 140ºF (-35º to +60ºC) |
| Connections | 1/4†Quick Connects, 6†Wire Leads (Optional |
| Package | Aluminum “C†Bracket - 5.1â€L x 5.9â€W x 3.1â€D (shown) Full Enclosure w/conduit knockout (optional) |
