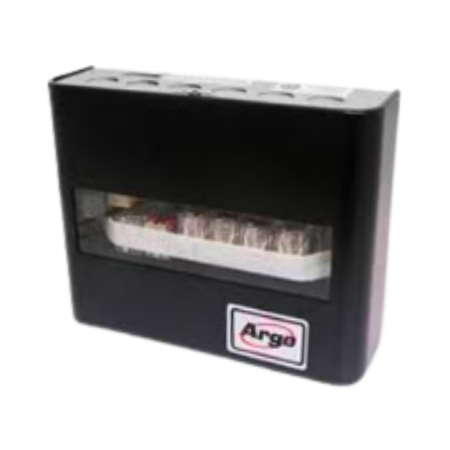

Argo ARM-6P Six Zone Expandable Switching Relay with Priority Safety Timer Z216

Argo ARM-6P Six Zone Expandable Switching Relay with Priority Safety Timer Z216
Images for general purposes only. Actual may be different than depicted.
Argo ARM-6P Six Zone Expandable Switching Relay with Priority Safety Timer Z216 Argo ARM-6P Six Zone Expandable Switching Relay with Priority Safety Timer Z216

Argo ARM-6P Six Zone Expandable Switching Relay with Priority Safety Timer Z216

SKU: ARM-6P
UNSPSC: 39122300
Free Shipping over $199
Rating: (1)
Quantity Price Stock
61
Usually Ships 2 - 4 Weeks
$454.05     /ea
61
Add to Cart
Add to Wishlist
Add to Cart
Add to Wishlist
0
$0.00
0
$0.00
0
ARM-6P

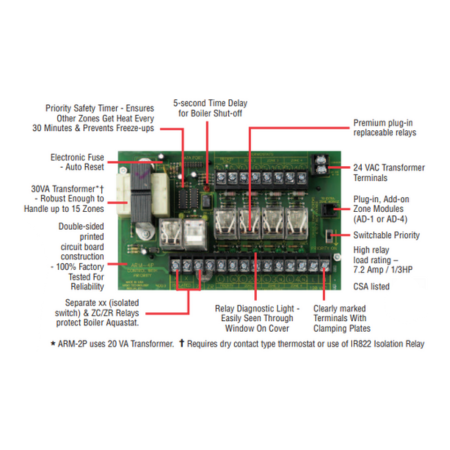

The Argo ARM-6P is a 6-zone SPST expandable switching relay that features priority zoning with a built-in safety timer, ensuring no zone remains unheated for more than 30 minutes and helping to prevent freeze-ups.  The unit operates on a 120V, 60 Hz power supply with a 30 VA transformer.  CSA Listed for compliance and safety.

Features
  • Auto-Reset Electronic Fuse
  • 5-Second Time Delay for Boiler Shut-Off
  • Relay Diagnostic Light Visible through the Cover Window
  • Separate XX and ZC/ZR Relays to Protect the Boiler Aquastat
  • Clearly Labeled Terminals with Clamping Plates for Simplified Wiring
  • High Relay Load Rating (1/3 HP) for Demanding Circulator Loads
  • Plug-In Replaceable Relay for Easy Maintenance
  • 24 VAC Transformer Terminals

Built on a double-sided printed circuit board and 100% factory-tested for reliability, the ARM-6P supports expansion up to 15 zones using optional add-on modules (AD-1 or AD-4).  Designed for efficient zoning control, it is ideal for both residential and light commercial hydronic heating systems.
Zone 6
Voltage 120V
Frequency 60 Hz
VA Rating 30 VA
Amperage 7.2A
Thermostat Current 0.085 Amps
Switching Action SPST
Load Rating 1/3 HP
Time Delay 5 Seconds
Application Zoning
Write a Review

By Andre

from Reisterstown MD

Yes, I would recommend this product to a friend or co-worker

5.0 Excellent service

The product arrived in a timely fashion. It was easy to install and saved me money by doing it myself.
