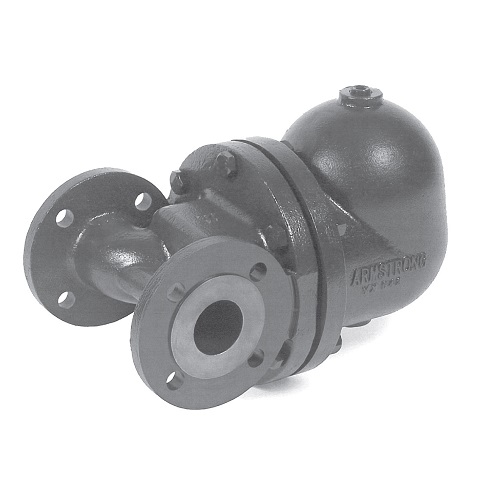

Armstrong AIC Series F&T traps are designed for industrial service up to 465 psig (32 barg). They feature all the benefits of Armstrong F&T traps, such as operation against back pressure, continuous drainage, high-capacity venting of air and CO2, long life and dependable service and enjoys the convenience of in-line connections.
Armstrong AIC Series F&T traps are the perfect solution for applications where there is a need to vent air and non-condensable gases quickly under varying loads.
Maximum Operating Conditions
Maximum allowable pressure (vessel design)†: 580 psig @ 572°F 40 barg @ 300°C
Maximum Allowable Pressure: 580 psig (40 barg)
Maximum Allowable Temperature: 572°F (300°C)
Maximum Operating Pressure: 465 psig (32 barg)
May be derated depending on flange rating and type.

 Note: Caution should be used when Float and Thermostatic steam traps
are applied in systems where freezing or excessive hydraulic shock can
occur.
Connections:
Screwed NPT and BSPT
Flanged ANSI and DIN

Materials:
Body & Cap- Ductile Iron EN1563 EN-GJS-400-18U (ASTM A395)
Gasket-Graphite
Seat- Stainless Steel 17-4PH
Internals- Stainless Steel
Valve- Stainless Steel 17-4PH
Thermostatic Air Vent- Hastelloy Wafer

Options:
Integral vacuum breaker (Maximum pressure is 150 psig (10 barg)).
Add suffix VB to model number.
