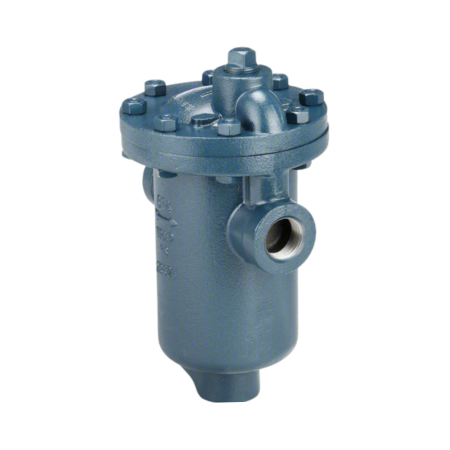

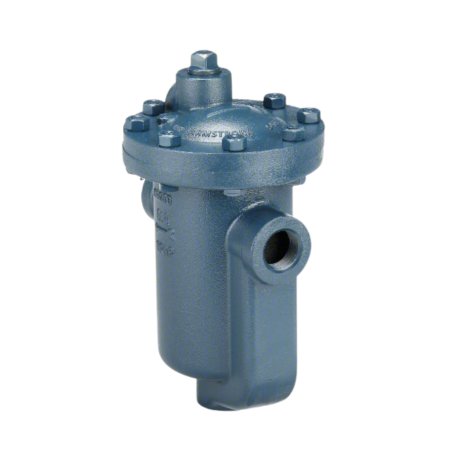

Armstrong International 816-2-250 Inverted Bucket Steam Trap 2" NPT 250 psi

Name: Armstrong International 816-2-250 Inverted Bucket Steam Trap 2" NPT 250 psi
Brand: Armstrong International
SKU: 816-2-250
Price: 2773.87 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Armstrong International 816-2-250 Inverted Bucket Steam Trap 2" NPT 250 psi

SKU: 816-2-250

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 4 Weeks Usually Ships 2 - 4 Weeks	$2,773.87 /ea	Usually Ships 2 - 4 Weeks

Add to Cart

Add to Wishlist

Shipping Note

Ships via LTL ( Truck )

Add to Cart

Add to Wishlist

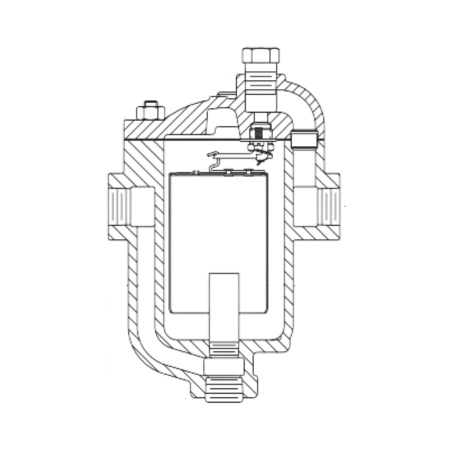

The Armstrong International 816-2-250 is an inverted bucket steam trap made of cast iron. This device has a 3/8” orifice and 2” NPT connection that can handle 250 psi.

Orifice Size	3/8"
Connection Size	2" NPT
Maximum Pressure	250 psi (17 bar)
Maximum Temperature	450°F (232°C)
Body Material	Cast Iron
Application	Steam Lines
Steam Trap Type	Inverted Bucket
Installation Orientation	Horizontal
Number of Ports	2
Configuration	In-line

Download Product Information:

Armstrong 814-816 Series Inverted Bucket Steam Traps Datasheet

Armstrong Inverted Bucket Steam Traps Service Guide
