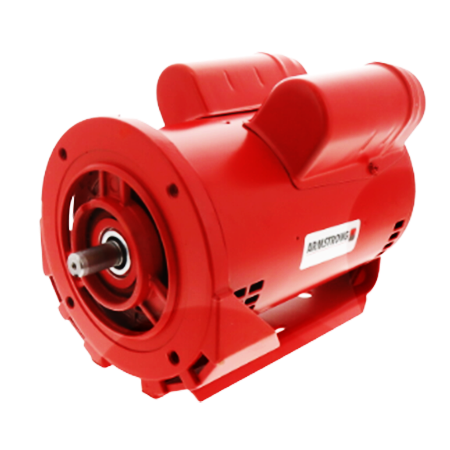

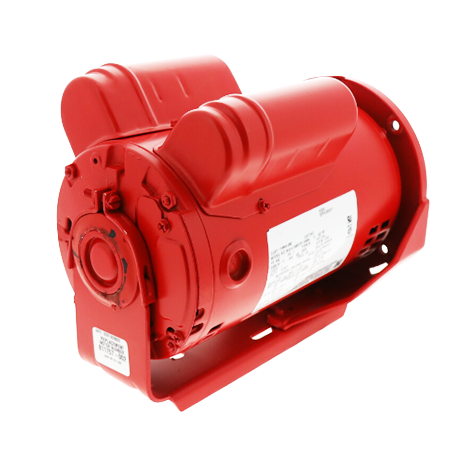

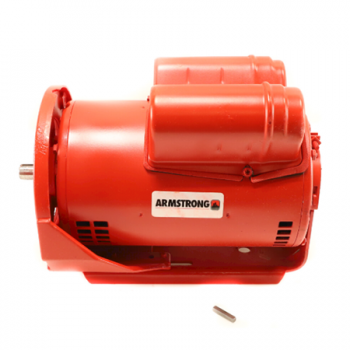

The 811757-002 (56B17D11008A) is a single-phase resilient mount motor that has a power rating of 3/4 Hp, 115/208-230V, and 60 Hz frequency. The motor rotates in a clockwise direction at a speed of 1725 RPM. UL-recognized and CSA-certified.
The unit has a permanently lubricated motor to reduce maintenance suitable for Armstrong circulation pumps. It features an open drip-proof design to minimize the motor heat. The 874055-000 replacement motor mount set is also available.
Check out the replaced motors and compatible pump models:
| Replaced Motors | Compatible Pump Models |
M800082 M80081 MAGOOD-7606B M80065 MOT259-6 MOT260-6 MOT925-6 MOT335-6 M80077 111047 169051 116642-062 |
S57 1050 11/2B 1050 2B H54 H64 H66 1060 1 1/2D 1060 2D |
| Voltage | 115/208 - 230V |
|---|---|
| Rotation Speed | 1725 RPM |
| Horse Power | 3/4 Hp |
| Hertz | 60 Hz |
| Rotation | Clockwise |
| IP Rating | IP22 |
| Phase | 1 |
| Approvals | UL recognized & CSA certified |
