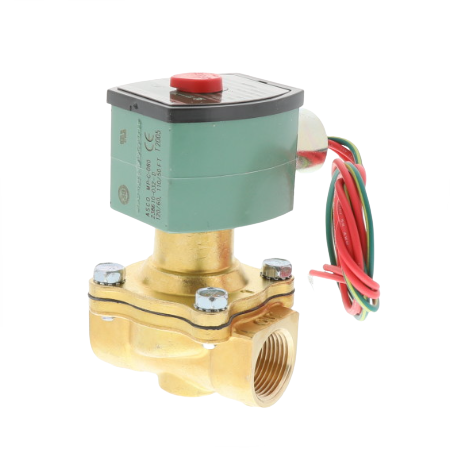

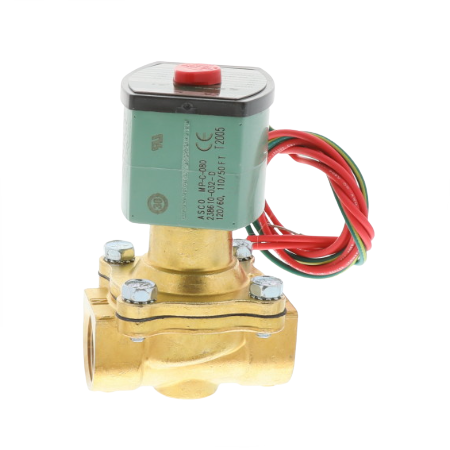

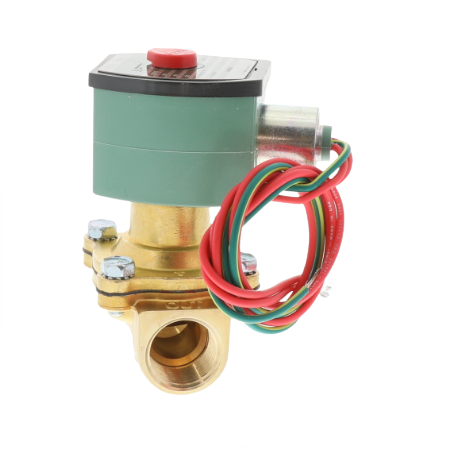

Asco 8210G35 General Service 2-Way Solenoid Valve 3/4" Normally Open 0-125 PSI

Asco 8210G35 General Service 2-Way Solenoid Valve 3/4" Normally Open 0-125 PSI
Images for general purposes only. Actual may be different than depicted.
Asco 8210G35 General Service 2-Way Solenoid Valve 3/4" Normally Open 0-125 PSI Asco 8210G35 Pilot Operated General Service Solenoid Valve Asco 8210G35 Brass Solenoid Valve NEMA4X Enclosure

Asco 8210G35 General Service 2-Way Solenoid Valve 3/4" Normally Open 0-125 PSI

SKU: 8210G35
Tariff HS Code: 8481809005
Rating: (1)
Quantity Price Stock
15
Usually Ships 2 - 3 Weeks
$373.84     /ea
15

Buy in Bulk & Save

Quantity Price
5+ $355.15 /ea
0
$0.00
0
$0.00
0
8210G35
The Asco 8210G35 is a pilot operated general service two-way normally open solenoid valve.  The solenoid valve has a 3/4" NPT connection size, 5.5 Cv flow capacity, and a 0-125 psi pressure rating.  Also, it is UL listed and CSA certified.

The valve body is made of brass material, sealed with NBR, and its solenoid electrical parts are protected with NEMA 4X enclosure.  The 8210G35 high-flow valve's applicable mediums are air, water, and light oil.

The valve can be utilized in different industrial applications such as Industrial Water Control, Car Wash, Air Compressors, Pumps, and Laundry Equipment.

See below the operating differential pressure in each medium:

OPERATING PRESSURE DIFFERENTIAL
MEDIUM MAXIMUM AC MAXIMUM DC
Air-Inert Gas 0 - 150 psi 0 - 125 psi
Water 0 - 150 psi 0 - 125 psi
Light Oil @ 300 SSU 0 - 125 psi 0 - 80 psi

Note: Installation and service maintenance shall be conducted by a professional technician.

Connection Size 3/4"
Connection Type NPT
Valve Outlet 2-Way
Valve Operation Normally Open
Voltage 120VAC
Flow Capacity 5.5Cv
Maximum Fluid Temperature AC: 82°C DC: 65°C
Body Material Brass
Enclosure NEMA4X
Approval UL Listed , CSA
