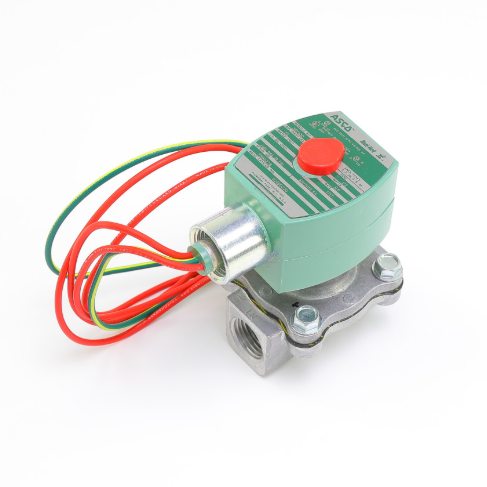

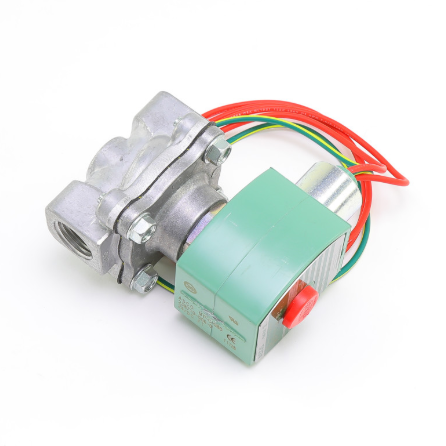

The Asco 8215G20-24VDC  is a 1/2-inch NPT 2-Way Normally Closed Solenoid Valve or Air-Fuel Gas Shutoff Valve with Aluminum Body.  It has a capacity of  238,500 BTU/HR. flow capacity of 4.4 CV, 24 VDC electric voltage, and operating pressure rate of 0 to 25 PSI.  The valve consists of NBR seals and Nema 4x Enclosure housing.

Series 8215 valves are 2-Way normally closed internal pilot-operated solenoid valves.  These valves are designed to handle liquified petroleum gases (propane) in both liquid and gaseous states.  Valve bodies are made of rugged aluminum with trim and internal parts made of steel and stainless steel.  Series 8215 valves may be provided with a general-purpose, explosion-proof, or watertight solenoid.




Catalog No.

Pipe Size

Orifice Size

Cv Flow Factor

Gas Capacity Btu/hr

Operating Pressure Differential (PSI)

Maximum Fluid Temperature (F)

Const. Ref.

Watt Rating/Class of Coil Insulation

8215G020

1/2"

3/4"

4.4

238,500

Minimum

Maximum  AC

Maximum DC

AC

DC

AC

DC

AC

DC

0

Air-Fuel Gas

Air-Fuel Gas

125

104

2

10.1/F

11.6/F

50

25
