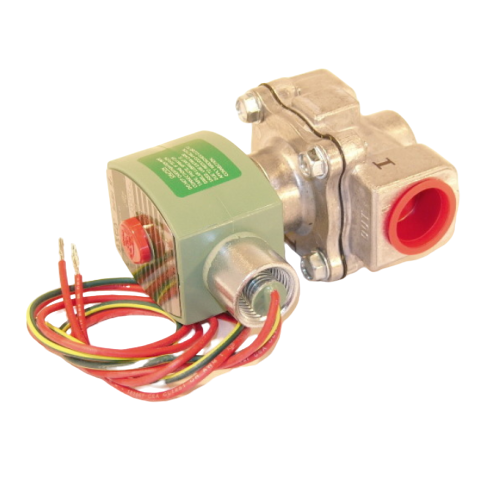

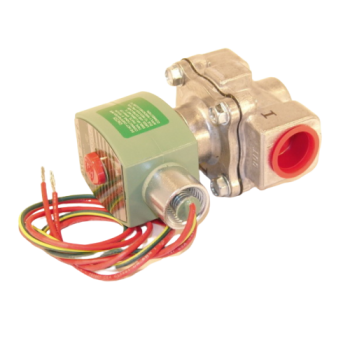

Asco 8215G30-24VDC is an Air-Fuel Gas Shutoff Valve with Aluminum Body. It has a 3/4 inch NPT connection, a flow capacity of 5.1, an operational pressure differential of 0-25 PSI, and a gas capacity of 247,500 BTU/HR. This valve features a 2-Way valve outlet with a Normally Closed valve operation and a NEMA4X enclosure that houses the valves' internal parts which are made of steel and stainless steel.

Series 8215 valves are 2-Way normally closed internal pilot-operated solenoid valves. These valves are designed to handle liquified petroleum gases (propane) in both liquid and gaseous states. Valve bodies are made of rugged aluminum with trim and internal parts made of steel and stainless steel.  Series 8215 valves may be provided with a general-purpose, explosion-proof, or watertight solenoid.




Catalog No.

Pipe Size

Orifice Size

Cv Flow Factor

Gas Capacity Btu/hr

Operating Pressure Differential (PSI)

Maximum Fluid Temperature (F)

Const. Ref.

Watt Rating/Class of Coil Insulation

8215G030

3/4"

3/4"

5.1

247,500

Minimum

Maximum  AC

Maximum DC

AC

DC

AC

DC

AC

DC

0

Air-Fuel Gas

Air-Fuel Gas

125

104

4

10.1/F

11.6/F

50

25
