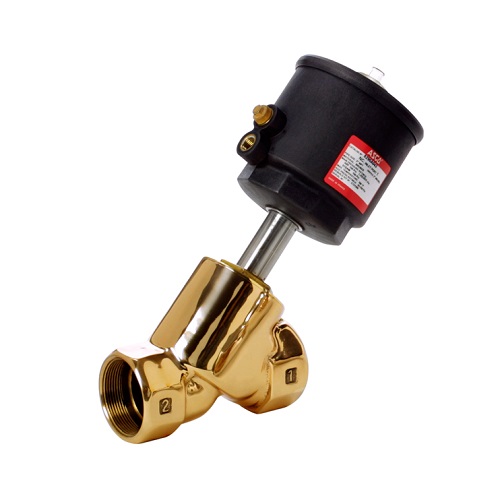

The 8290 Angle Body Piston Valve is a 2-way direct acting valve available in a normally closed or normally open construction. They have proven durability in handling aggressive fluids, such as steam, hot water, solvents, and light slurries.

The 8290 Series is pressure operated with a straight-through design available with bronze or stainless steel bodies built for demanding applications. There are many optional features including position indication and proportional control.

Built for demanding applications, these valves come in a straight-through body design made of bronze or stainless steel. There are many optional features including visual/electrical position indicator or a stroke limiter. The 8290 Series is suitable for the following applications:

• General Service (air, inert gas, water, oil, light slurries)
• Steam and Hot Water

Features

• High flow due to angled seat design
• Anti-water hammer design (fluid entry under the disc)
• Actuator rotatable through 360°
• 2-way normally closed operation
• Fluid isolation between electrical actuator and valve body
• LEDs identify valve position and status
• Vacuum service up to 7 x 10-3 Torr
• RoHS 2 compliant
• Ideal for “Lead Free” applications
• Feedback signal for 24 VDC and 24 to 48 AC

General
Fluid: Air, inert gas, liquids (water, oil, light slurries)
Fluid Temperature Range: 14°F to 194°F (-10°C to 90°C)
Ambient Temperature Range: 14°F to 122°F (-10°C to 50°C)
Maximum Viscosity: 2,700 SSU
Response Time: < 1.3 sec. (opening) / < 1.3 sec. (closing)
