Asco 8908A001 Electronic Module for Series SD8202

Name: Asco 8908A001 Electronic Module for Series SD8202
Brand: Asco
SKU: 8908A001
Price: 906.01 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

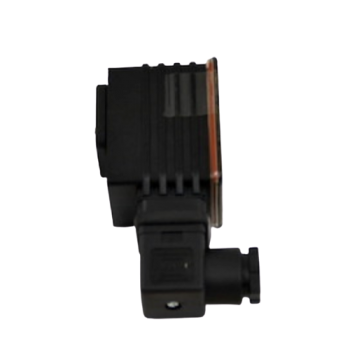

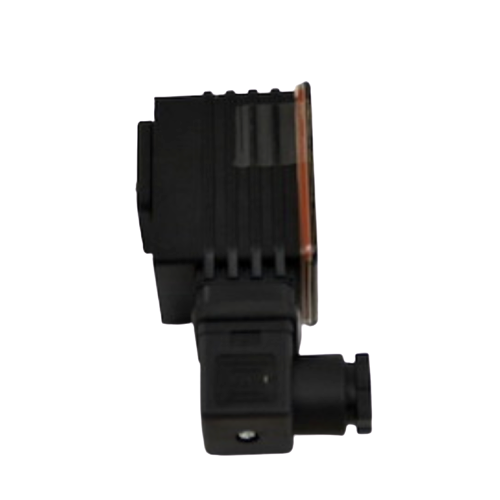

Asco 8908A001 Electronic Module for Series SD8202

SKU: 8908A001

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1 - 3 Weeks Usually Ships 1 - 3 Weeks	$906.01 /ea	Usually Ships 1 - 3 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Asco 8908A001 Electronic Module for Series SD8202 1/4" to 1/2" Posiflow Proportional Solenoid Valves. This model is a IP-65 spade plug connector to ISO 4400 that has an electronic amplifier for input control signal or setpoint modification and amplification to a modulating output voltage providing stepless control for Series 8202 Valves.

The Electronic Control Unit maintains a specific flow rate by pulse width modulation. The coil current is maintained constant and substantially independent from changes in the coil winding resistance which is caused by temperature variation. Turning it on and off will cut voltage to the coil into rectangular pulses. The current throught the coil is kept constant by varying the “on” time (pulse width) percentage to compensate for temperature variations

Switch-off current	<2% of max. input control signal
Input control signal (selectable)	0-10 VDC or 0-20 mA or 4-20 mA
Maximum full-load current	1100 mA (factory set at 500 mA)
Nominal supply voltage	24 VDC +/- 10%,maximum ripple 10%
Ramp time	Manually activated via on/off switch; adjustable 0.1-3 seconds
Adjustable Off-set	15-50% of pulse width modulation voltage
Adjustable Full-Load	30-100% of pulse width modulation voltage
Adjustable PWM Frequency	40-700 Hz
Power Consumption	0.8 watts

Download Product Information:

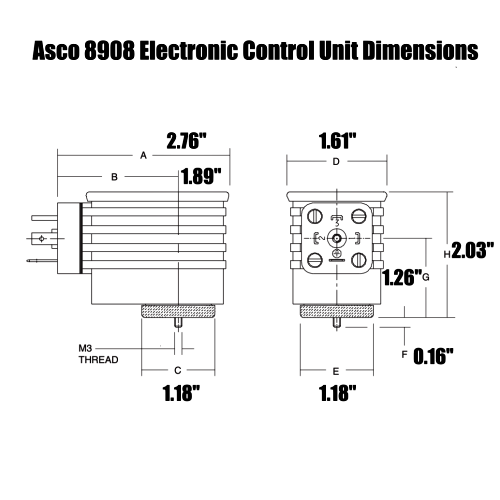

Asco Electronic Control Unit Technical Datasheet

Asco Series 8908 Control Unit Installation Instructions

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

Is there an application note of how to wire it up ( pin connections names, ect). all I can find is dimensional drawings.

Asked on July 28, 2017 by Edward from Lexington Ma

1 Answers

Have an answer? Click Here

We have added an Installation guide to the product detail page under technical information that you may download. It has a Wiring Schematic in the document.
