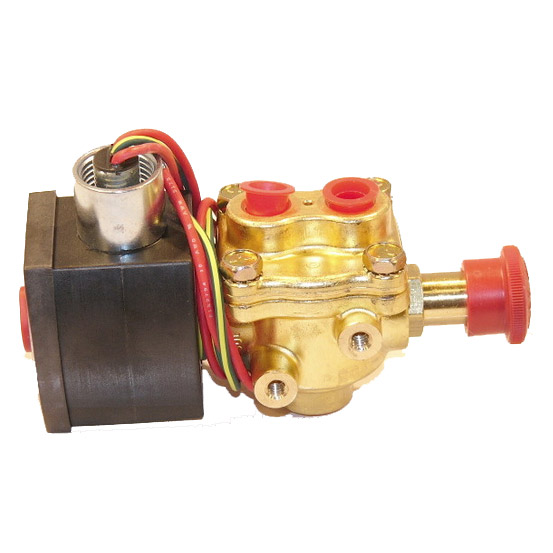

Asco EF8342G1MS General Service Solenoid Valve

Name: Asco EF8342G1MS General Service Solenoid Valve
Brand: Asco
SKU: EF8342G1MS
Price: 796.20 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Asco EF8342G1MS General Service Solenoid Valve

SKU: EF8342G1MS

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2-3 Weeks Usually Ships 2-3 Weeks	$796.20 /ea	Usually Ships 2-3 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Asco 4-Way Direct-Acting Solenoid Valves

Series 8342 Valves are 4-Way direct-acting solenoid valves that require no minimum operating pressure and no minimum flow for operation.. Valves are made of rugged brass or stainless steel and have a silding resilient seal for tight seating. Standard valves have a general purpose solenoid enclosure. Valves may be provided with a combination explosion-proof/watertight solenoid enclsoure. Series 8342 valves with Suffix P in the catalog number are designed specifically for dry inert gas or non-lubricated air service.

Features:

Direct acting operation and high flow construction
Direct acting, high flow slide-style valve
Optional flow control regulates cylinder speed independently, in either direction
Mechanical detent on dual solenoids holds last position, even after loss of electric power, pneumatics or pressure
No Minimum Operating Pressure Differential required to shift valve
Dual solenoid operation: solenoid may be energized momentarily (1/10 second) or continuously
Mountable in any position

Connection	1/4" NPT
Valve Operation	4-Way
Voltage	120V
Pressure Range (Air)	0-125 PSI
Pressure Range (Water)	0-100 PSI
Pressure Range (Light Oil)	0-100 PSI
Body Material	Brass
Enclosure	Explosion-proof

Download Product Information:

Asco 8342 Solenoid Installation Instrucitons

Asco 8342 Solenoid Technical Data Sheet
