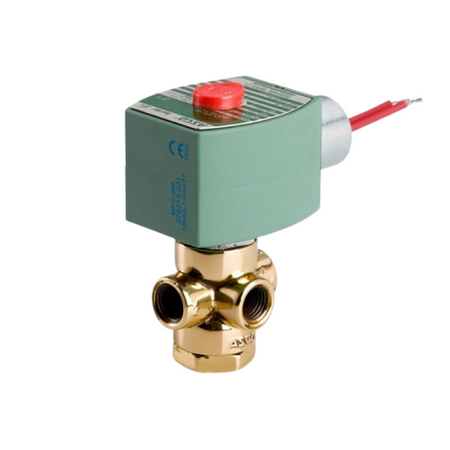

The Asco EFHT8320G203 is a direct-acting 3-way/2-position normally closed solenoid valve with 1/4" NPT connections. This device has a stainless steel body with an NBR seal that operates at 120 VAC, 11.6/F watt rating, and 60 Hz. UL Listed and CSA Certified.
The 8320 Series is for general service that handles media such as air-inert gas, water, and light oil. This has a pressure range from 0 to 85 psi and a 0.25 Cv flow factor. It features an explosion-proof enclosure and a high-temperature coil. Mountable in any position.
Applications:
Check out Installation and Maintenance Instructions on the Technical Data tab.
| Maximum Fluid Temperature | 200˚F |
|---|---|
| Valve Configuration | Normally Closed |
| Pipe Size | 1/4" |
| Body Material | Stainless Steel |
| Operating Pressure Range | 0-85 PSI |
| Seal Material | NBR |
| Valve Design | 3-Way/2-Position |
| Flow Factor | 0.25 Cv |
| Valve Type | Direct-Acting |
| Voltage | 120 VAC |
