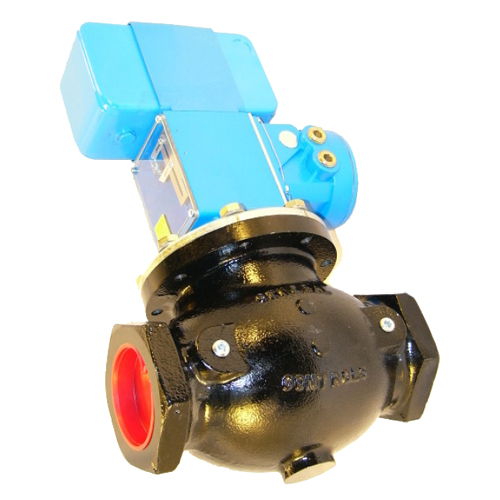

Asco H118AL122F1F26V16 Hydramotor Operated Gas Shut-off Valve Cast Iron Body 3" NPT Valve Seal Overtravel Trim 120V

Name: Asco H118AL122F1F26V16 Hydramotor Operated Gas Shut-off Valve Cast Iron Body 3" NPT Valve Seal Overtravel Trim 120V
Brand: Asco-General
SKU: H118AL122F1F26V16
Price: 3519.08 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Asco H118AL122F1F26V16 Hydramotor Operated Gas Shut-off Valve Cast Iron Body 3" NPT Valve Seal Overtravel Trim 120V

SKU: H118AL122F1F26V16

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2-3 Weeks Usually Ships 2-3 Weeks	$3,519.08 /ea	Usually Ships 2-3 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Asco Hydramotor Operated Gas Shutoff Valve

The normally closed H118 is a combination Hydramotor actuator and safety shutoff/control gas valve. It is used for commercial and industrial burners in applications such as furnaces, dryers, dehydrators, conversion burners and heaters. The cast iron, globe-type valve body features a soft synthetic seat and integral heavy-duty return spring for tight and certain closure in one second or less upon current interruption. The self contained, hermetically sealed, pull-type electro-hydraulic actuator consists of a motor/pump unit immersed in oil, reducing wear and provides highly reliable operation.

Pipe Taps	1/4" Upstream & Downstream taps for routine leak testing
Body Class	Cast Iron 3"
Ambient Temperature Range	-40F to 150F (-40C to 66C)
Fluid	Fuel Gas
Opening & Closing Time	28-second & 1-second
Valve Operation	2-Way, Normally Closed
Voltage	120V
Flow Coefficient	125Cv
Pressure Range	0-15 PSI
CFH	6.095 CFH

Download Product Information:

Asco H118 Series Technical Data Sheet
