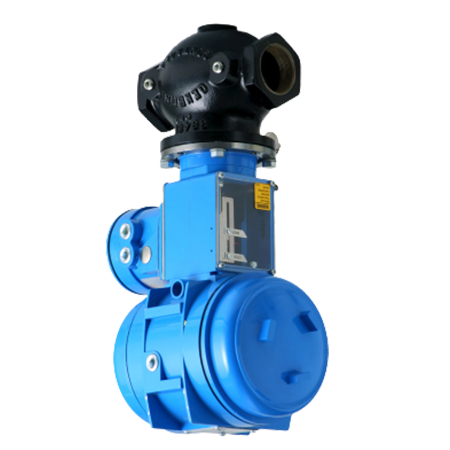

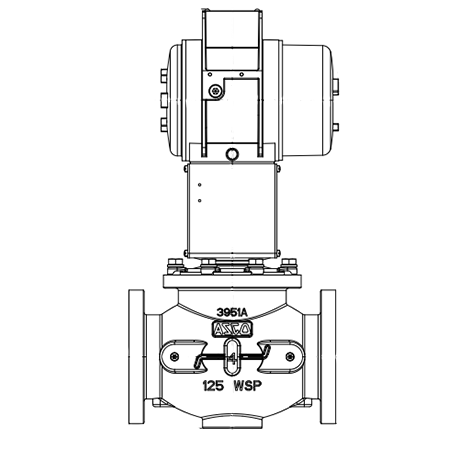

The H118AN132F1F26V16 is a hydramotor actuator with a safety shutoff gas valve that has a 5 to 24-second opening time and a 1-second maximum closing time. The valve has a 4" NPT flange pipe connection and is designed with a soft synthetic seat and integral heavy-duty return spring for secure and assured closure. UL-listed, FM-approved, and CSA-certified.
The unit is suitable for furnaces, dryers, dehydrators, conversion burners, and heaters in commercial & industrial burner applications with natural, mixed, manufactured, or LP gases for services such as scrubbed & dried coke, sewer, and digester gases.
The H118AN132F1F26V16 features a proof of closure switch with multi-positional mounting for quick and easy installation. Also available are the H30A2220H420 hydramotor actuator & V1AP7NA166 valve body replacement parts and an S106927A222 pump unit accessory.
| Voltage | 120V |
|---|---|
| Flange Connection Size | 4" |
| Hertz | 60 Hz |
| Body Material | Cast Iron |
| Maximum Fluid Temperature | 150° F |
| Maximum Operating Pressure | 15 PSI |
| Maximum Closing Time | 1 second |
| Opening Time | 15 - 25 seconds |
| Ambient Temperature | -40˚F to 150˚F (-40˚C to 66˚C) |
| Approvals | UL listed, FM approved, CSA certified |
Download Product Information:
Asco H118AN132F1F26V16 Gas Shut-off Valve Technical Datasheet
Asco H118AN132F1F26V16 Gas Shut-off Valve Installation Guide
