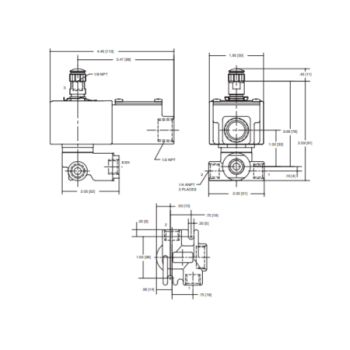

The Asco JPIS8317B308-24VDC is a 3-way universal intrinsically safe and non-incendive field wiring valve that operates at 24VDC. It is FM and CSA Approved, ensuring compliance with safety standards.
This valve features a stainless steel body with a 1/4" NPT connection and an aluminum junction box with a 1/2" NPT conduit. It can handle 149°F (65°C) maximum temperature and a 5 to 130 psi pressure range.
The JPIS8317B308-24VDC is a direct replacement for the WBIS8317A308-24VDC solenoid valve. It is suitable for clean, dry air or inert gas, filtered to at least 4 micrometers. Mounted in any position.
| Voltage | 24VDC |
|---|---|
| Valve Outlet | 3-Way |
| Operating Pressure Differential | 5-130 psi |
| Connection Size | 1/4" NPT |
| Body Material | Stainless Steel |
| Maximum Fluid and Ambient Temperature | 149°F (65°C) |
| Approvals | FM and CSA Approved |
| Mounting Position | Any Position |
| Flow Factor | 0.06 Cv (Pressure to Cylinder) ; 0.73 Cv (Pressure to Exhaust) |
| Coil Construction | Class H |
