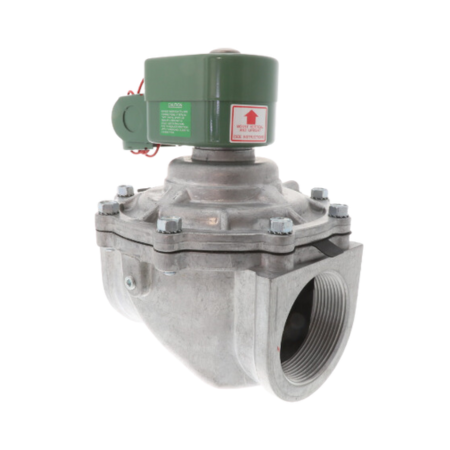

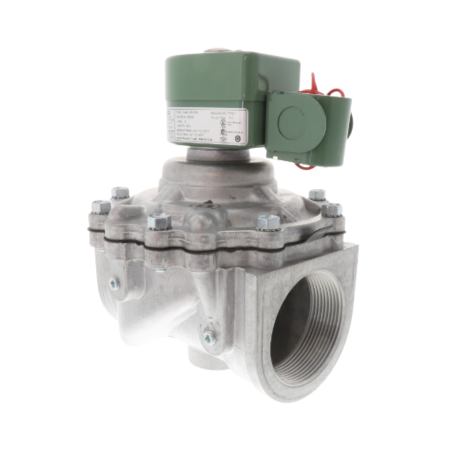

The Asco S261SH02N3LK4 is a 2-way, normally closed, pilot-operated gas shutoff valve designed to operate at 120V and 60 Hz. It is UL Listed, CSA Certified, and FM Approved, ensuring compliance with industry safety standards.
This valve features an aluminum body with a 3” NPT connection and a 3” orifice, capable of handling a pressure range from 0 to 25 psi. It provides a 138 Cv (119 Kv) flow capacity and can support up to 7,430,000 BTU/hr of gas flow.
The S261SH02N3LK4 serves as a direct replacement for the S261SG01N3LK4 gas shutoff valve. Commonly used for the safety shutoff of condensate-free combustible gases in commercial and industrial gas burners.
| Voltage | 120V |
|---|---|
| Frequency | 60 Hz |
| Connection Size | 3" NPT |
| Orifice Size | 3" |
| Pressure Range | 0-25 psi |
| Flow Capacity | 138 Cv (119 Kv) |
| Gas Capacity | 7,430,000 btu/hr |
| Operating Temperature | 0 to 25 psi (1.7 bar) |
| Maximum Fluid Temperature | 140°F (60°C) |
| Wattage | 28.2W |
