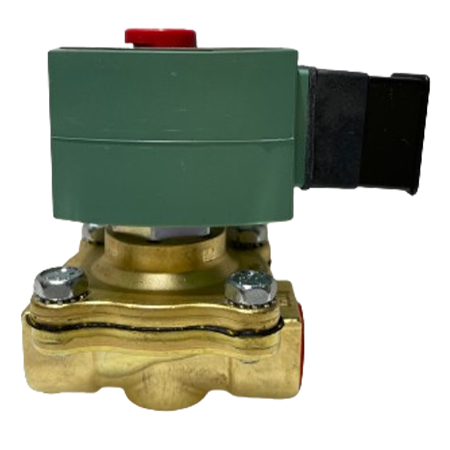

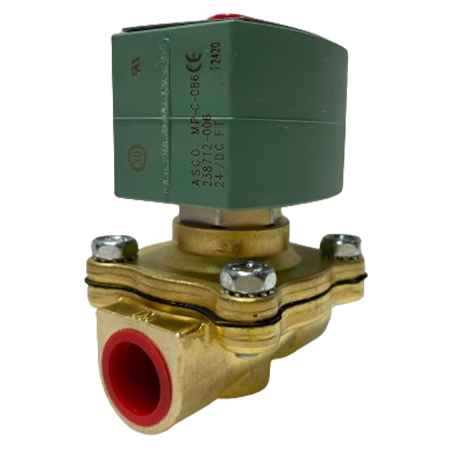

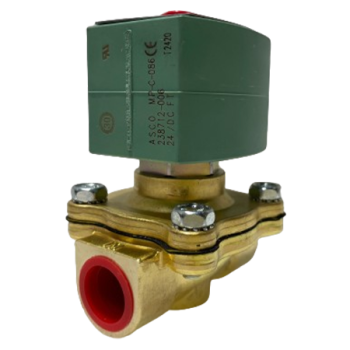

The SC8210G2-24VDC is a general service solenoid valve that has a 1/2" NPT connection size, 24VDC, and 4 Cv flow capacity.  It has 5 to 125 psi air and a 5 to 100 psi pressure range for water and light oil.  UL-recognized, CE-marked, and CSA-certified.

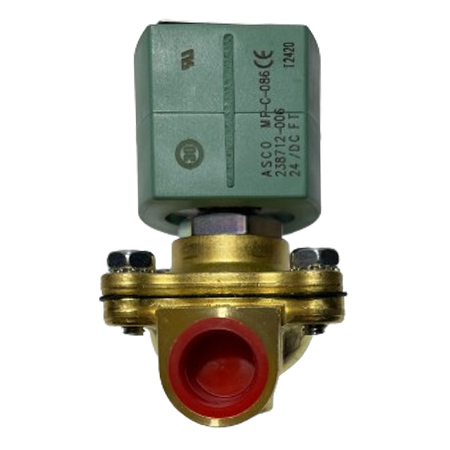

The two-way normally closed solenoid valve is used to control the flow of air, water, and light oil by opening or closing the valve when the coil is energized.  The unit features an integral adjustable bleed device that controls the piston's closing speed.  It is constructed with a forged brass body and NBR seals that provide an NEMA 4X enclosure.

Suitable industrial applications:

• Car Wash
• Air Compressors
• Pumps
• Laundry Equipment
• Industrial Water Control

The SC8210G2-24VDC is easy to install with DIN terminals that allow easy mounting.  The 302-373 rebuild kit accessory, 238712-006 coil, and 276-983 DIN terminal kit replacement parts are also available.
