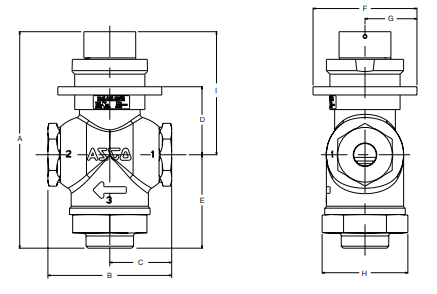

| Valve Body | A | B | C | D | E | F | G | H |
| V13FS2D03T166 | 6.57" | 3.75" | 1.87" | 2.06" | 2.83" | 3.15" | 1.57" | 2.60" |
| Pipe Size | 1/2 inch |
|---|---|
| Cv Flow Factor | 2.5 |
| Operating Pressure Differential | 0-300 PSI |
| Maximum Fluid Temperature | 267 Fahrenheit |
| Valve Body Material | Bronze |
Download Product Information:
Asco Hydromotor Operated 3-Way Oil Shutoff Valve Technical Datasheet
