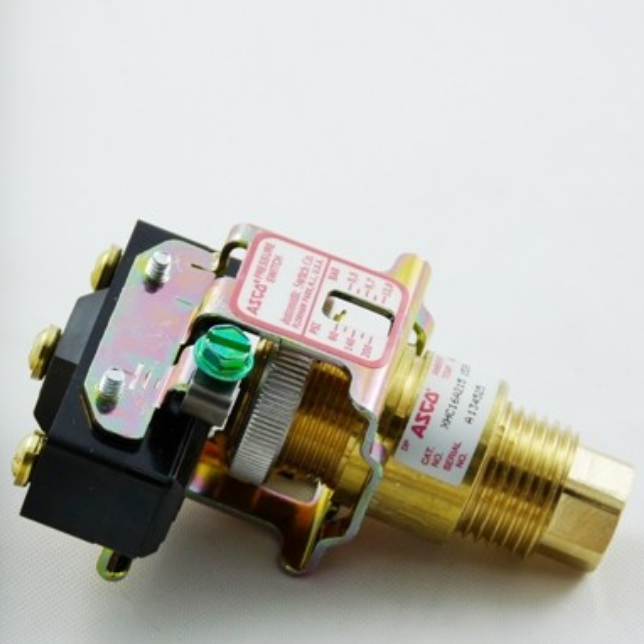

Asco XHC16A215-15298 Pressure Switch

Asco XHC16A215-15298 Pressure Switch
Images for general purposes only. Actual may be different than depicted.
Asco XHC16A215-15298 Pressure Switch

Asco XHC16A215-15298 Pressure Switch

SKU: XHC16A215-15298
Rating:
Quantity Price Stock
Usually Ships 3-4 Weeks
Usually Ships 3-4 Weeks
$420.34     /ea
Usually Ships 3-4 Weeks

Buy in Bulk & Save

Quantity Price
5+ $414.03 /ea
0
$0.00
0
$0.00
0
XHC16A215-15298
Asco Miniature Pressure Switch

H-Series miniature pressure switches have field adjustable set points and fixed deadband, with diaphragm/piston sensor. They are available in open frame construction, Type 1 general purpose or Type 4 watertight enclosures. The resilient diaphragm/piston construction helps provide long life and maintains set point repeatability despite environmental temperature variations. The full size electical switch is a precision UL listed, snap-action type. H-Series switches are CSA approved and are UL listed under “Industrial Control Equipment”.

Features:
  • Field adjustable set points.
  • Fixed deadband.
  • Choice of open frame type, general purpose or watetight enclosure.
  • Small size.
  • Mounts in any position.
  • Rugged and vibration resistant, e.g., for compressors.
  • Visual adjustment scales in psig and bars.
Connection 1/8" Internal Process
Switch Action SPDT
Adjustable Operating Pressure Range 80-200 PSIG
Fixed Deadband at Mid-Range 10 PSI
