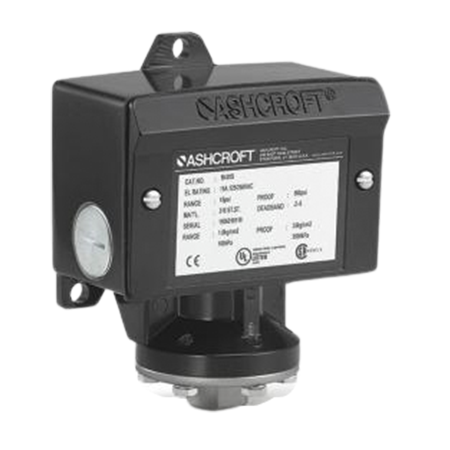

Ashcroft B428V-200 Pressure Switch 0-200 PSI

Name: Ashcroft B428V-200 Pressure Switch 0-200 PSI
Brand: Ashcroft
SKU: B428V-200
Price: 344.56 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Ashcroft B428V-200 Pressure Switch 0-200 PSI

SKU: B428V-200

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 3 Weeks Usually Ships 2 - 3 Weeks	$344.56 /ea	Usually Ships 2 - 3 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The B428V-200 is an SPDT pressure switch that has a 1/4" NPT connection size and 125/250V with 15 amps. It has a –20°F to 150°F (–19°C to 65°C) ambient temperature range and 0 to 200 psi pressure range. UL-listed, CE-approved, FM-approved, and CSA-certified.

Check out the suitable applications:

Offshore oil rigs
Chemical and petrochemical plants
Pulp and paper mills
Steel mills
Power plants
Water and sewage treatment plants
Other corrosive environments

The B428V-200 is designed with a water-tight NEMA 4X enclosure rating and a setpoint that can be calibrated by turning the 7/8" adjustment nut. It also features a setpoint locking screw after adjusting the setpoint.

Enclosure Rating	NEMA 4X
Ambient Temperature Range	–20°F to 150°F (–19°C to 65°C)
Switch Configuration	SPDT
Connection Size	1/4" NPT
Pressure Range	0 to 200 psi
Voltage	125/250V
Reset Type	Manual
Amperage	15A
Conduit Connection	3/4" NPT
Actuator Seal Material	Viton

Download Product Information:

Ashcroft B428V-200 Pressure Switch Technical Datasheet

Ashcroft B428V-200 Pressure Switch Installation and Maintenance Instructions

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

My switch serial # A6003679 has a reset button. What is the equivalent model number for this switch without a reset button but with a dead band? I want to change it out with a switch that automatically changes state after the pressure drops below the dead band.

Asked on December 18, 2017 by Ned from Perry, FL

1 Answers

Have an answer? Click Here

The B4 pressure switches can have a fixed or limited adjustable deadband. The B420 switches have a narrow deadband, and the B450 have a variable deadband. On this page, if you open any of the 3 data sheets, you can see an order code. B4 refers to the enclosure, for this product, the 28, refers to the switching element, to have a variable deadband, the switching element is 50. We can supply a B450B-100 PSI or a B450B-600PSI unit, both of which have a variable deadband. If you require a different configuration, please let us know and our team will be happy to add the product.

Replied on December 18, 2017 by Ori from Industrial Stores

The switch we have installed has a reset button. Is it possible to modify the switch such that resetting the switch is not necessary. That is, can I modify it to work with a dead band?

Asked on December 18, 2017 by Ned from Perry, FL

1 Answers

Have an answer? Click Here

No, we do not modify switches. To do so, you would need to order a B4 switch with a different switching element that offers a variable or narrow deadband.

Replied on December 18, 2017 by Ori from Industrial Stores
