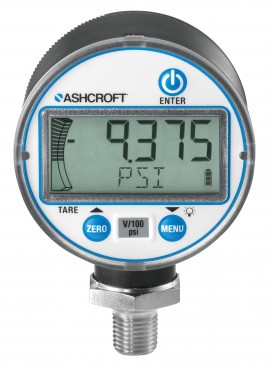

The Ashcroft^® DG25 general purpose digital pressure gauge provides exceptional performance, stability and reliability. The laser welded stainless steel sensor and socket make this product suitable for use with a wide variety of pressure media in demanding industrial applications. The DG25 was designed with OEM in mind and can easily be custom configured to meet unique requirements.

Features:

• Large LCD display
• Push-button menu navigation
• 9 engineering units: 1 field-programmable
• Min. / Max. function feature records low and high pressure events
• Bar graph display
• Wide variety of pressure connection thread options
• Protective boot (optional)
• Customized keypad (optional)

Specifications:

• Accuracy: ±0.5% terminal point (standard) / ±0.25% (optional)
• Pressure Ranges: Vacuum to 25,000 psi
• Full 5 digital LCD display
• Case size: 2 1/2"; polycarbonate / ABS
• IP67 weatherproof enclosure
• Wetted materials: Laser welded 316L stainless steel / and 17-4 Ph stainless steel
