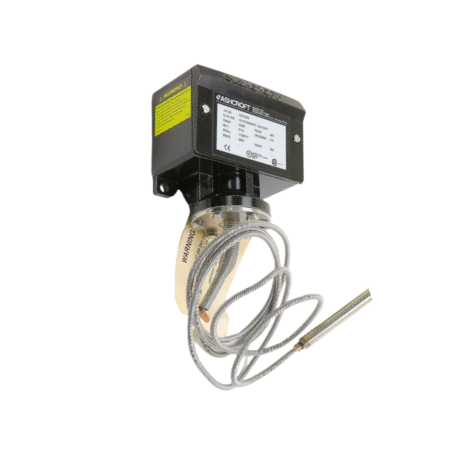

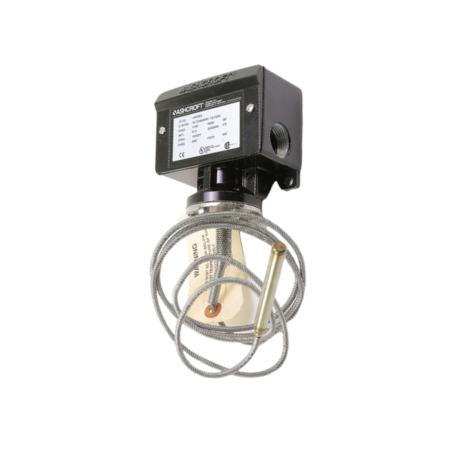

The Ashcroft T424T05-030 is an SPDT snap action temperature switch that operates at 15A and 125 VDC power ratings. This remote mount device has a 20 to 95°C (75 to 205°F) nominal range. UL and CSA Listed.
The temperature switch is constructed with a watertight NEMA 4X enclosure, 316 stainless steel system materials, and 302 stainless steel spring armor. It is ideal for temperature control, shutdown, or alarm operations.
The T4 has a general purpose and is used to control industrial and process applications such as the following:
| Filters Washer Steel Mills Power Plants Heat Exchangers Marine Equipment Lubrication Systems Heating and Air Conditioning |
Boilers Burners Degreasers Compressors Offshore Oil Rigs Hydraulic Systems Reverse Osmosis Systems Chemical and Petrochemical Plants |
Pumps Turbines Evaporators Food Processing Textile Machinery Recovery Systems Ground Support Equipment Water and Sewage Treatment Facilities |
| Applications | Process and Industrial |
|---|---|
| Capillary Length | 5' |
| Thermal System Reading | Remote Mount |
| Electrical Termination | 3/4 NPT Female |
| Enclosure Rating | NEMA 4X, IP66 |
| Enclosure Material | Watertight: Epoxy Coated Aluminum |
| Switch Type | SPDT |
| Set Repeatability (Accuracy) | ±1% of Span |
| Approvals | UL and CSA Listed |
| Nominal Range | 75 to 205°F (20 to 95°C) |
