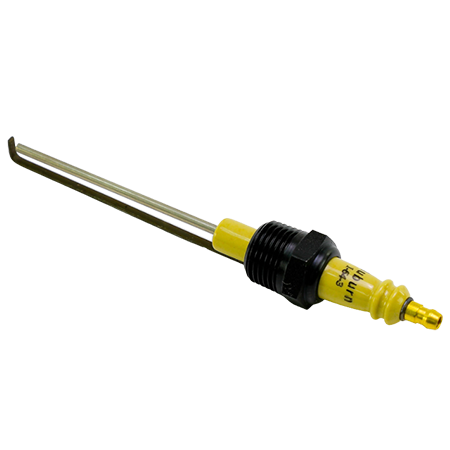

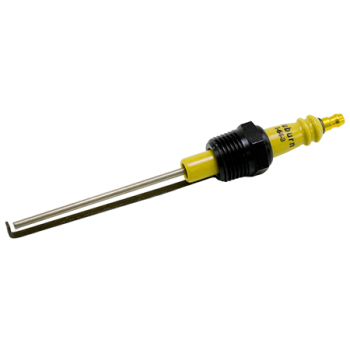

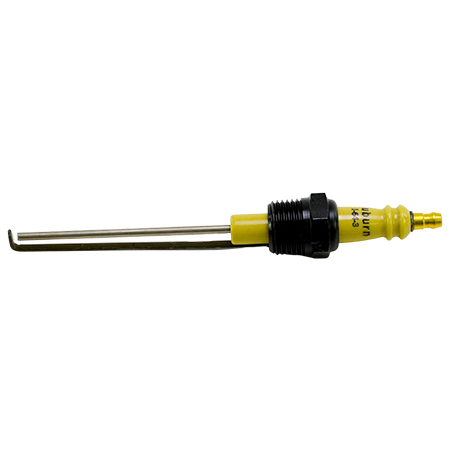

The I-64-3 (E5-I-64-3) is an electrode that has a 1/2-14" NPT and 7/8" hex connection size. It has a .090" gap and 0.12" rod outside diameter with a 6.24" overall length. UL-recognized.
The electrode is suitable for combustion system applications. The I-64 series is used to provide the spark to ignite and create a flame. It is constructed with nickel material to resist corrosion and heat.
The unit replaces part numbers 20136 and CA477.
The I-64 series is easy to install with a removable terminal nut.
| Connection Size | 1/2-14" NPT |
|---|---|
| Hex Connection Size | 7/8" |
| Gap Size | .090" |
| Rod Outside Diameter | 0.12" |
| Rod Length | 6.24" |
| Electrode Material | Nickel |
| Approvals | UL-recognized |
