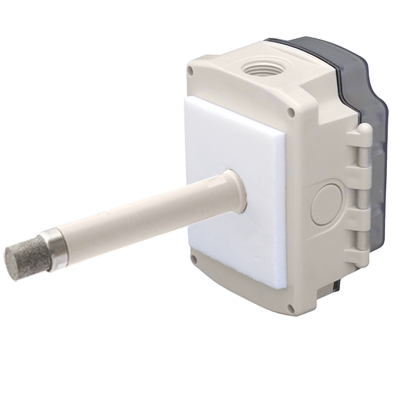

Automated Logic ALC/10K-2-H200-D-WP Humidity Sensor
The Automated Logic offers a Duct Humidity Transmitter or a Combination of Humidity and Temperature Sensors. All units probe insertion holes are sealed with closed cell foam. Also, the sensors feature BAPI-Box enclosure that has watertight packaging which consists of etched Teflon leadwires to withstand high humidity and condensation.
| Humidity Sensor | Capacitive +/- 2% (10 to 90% RH @ 23C) |
|---|---|
| Enclosure Rating | IP66 NEMA 4X |
| Enclosure Material | UV-Resistant Polycarbonate UL94 V-0 |
| Environmental Operation Range (Temperature) | -40F to 158F (-40C to 70C) |
| Environmental Operation Range (Humidity) | 0% to 100% RH |
| Temperature Sensor | 10K-2 Thermistor |
| Power & Consumption | 10 to 35 VDC, 22 mA maximum |
