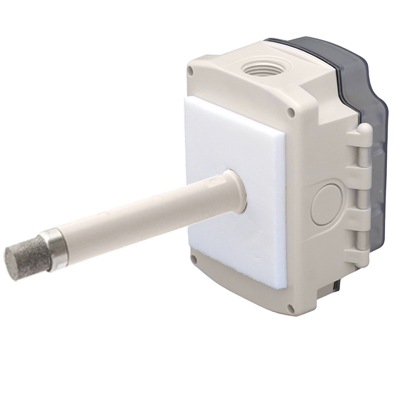

Duct Humidity (%RH) Transmitter with optional Temperature Sensor
Duct Humidity or Combination Temp/Humidity Units feature closed cell foam to seal the probe insertion hole, mounting tabs for easy installation and etched Teflon leadwires to withstand high humidity and condensation.

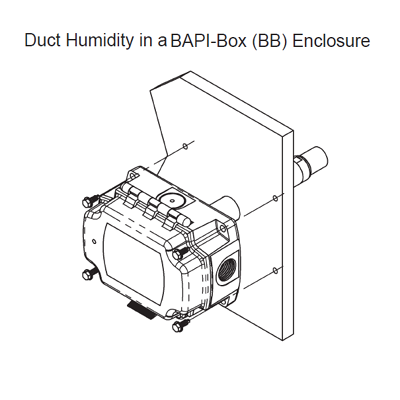

The Duct Units come with a BAPI-Box Crossover enclosure which features a hinged cover for easy termination and carries an IP10 rating (or IP44 with knockout plug installed in open port).
| Humidity Sensor | Capacitive +/- 3% (10 to 90% RH @ 23C) |
|---|---|
| Enclosure Rating | IP66 NEMA 4X |
| Enclosure Material | UV-Resistant Polycarbonate UL94 V-0 |
| Environmental Operation Range (Temperature) | -40F to 158F (-40C to 70C) |
| Environmental Operation Range (Humidity) | 0% to 100% RH |
| Temperature Sensor | 10K-2 Thermistor |
| Power & Consumption | 10 to 35 VDC, 22 mA maximum |
