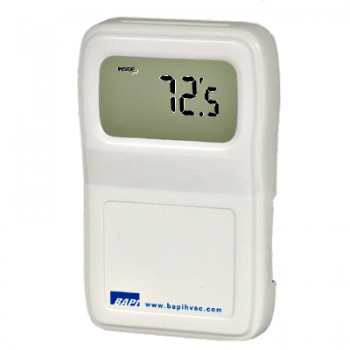

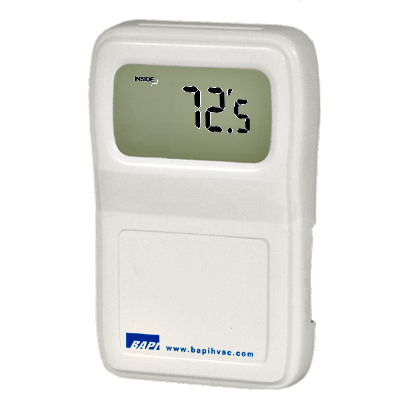

The patented BAPI-Stat 4 is available as humidity only sensor or as combination temp and humidity sensor with optional display, temperature setpoint and occupant override. Additional options include comm. jack, test & balance switch and warm white or gray logo plate.
• Patented BAPI-Stat 4 Enclosure with Large Display
• ±2% RH Accuracy with 4-20mA, 0-5V, 0-10V or 2-10V Output
• Optional Temp Setpoint, Override, Comm. Jack and T&B Switch
• Full-range Temperature Compensation of %RH Signal
• Two Year Warranty
| Connection Configuration | Common Ground |
|---|---|
| Override Configuration | No Override |
| Enclosure Type | BAPI-Stat 4 Style Enclosure |
| Humidity Transmitter | ±2% Humidity Transmitter, 0 to 5 VDC output |
| Sensor Type | Thermistor 3K @ 25°C |
