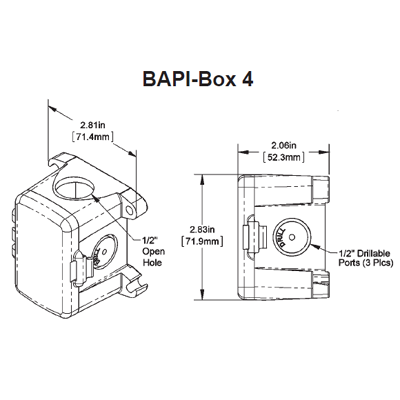

The BAPI BA/BB4-D is a Duct Configuration BAPI-Box 4 Enclosure for HVAC probes and transmitters. The enclosure dimension is 2.8” x 2.8” x 2.1” and holds an IP10 rating for indoor use.
To increase the enclosure rating, if a pierceable knockout plug is installed the rating turns into an IP44 rating. A foambacking is included and has a 1/4” probe hole.

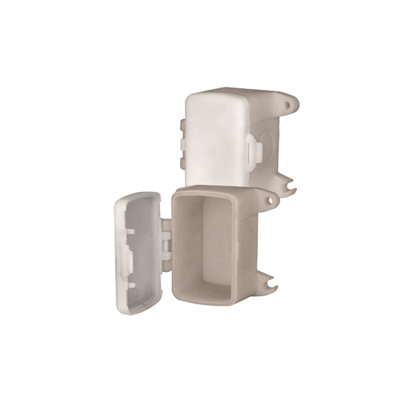

The case is warm white in color and made of Nylon material. Easy to wire or access through the hinged door.
| Environmental Operating Range | Temperature: -40C to 85C (-40F to 185F); Humidity: 0% to 100% RH Non-Condensing |
|---|---|
| PCB Mounting Rails | No Rails in BB4 Enclosure |
| Enclosure Rating | IP10 (IP44 with Pierceable Knockout Plug) |
| Door | Hinged with Latch Tab |
| Color | Warm White |
| Cover | Polycarbonate, UV Resistant, Opaque without gasket |
| Flame Rating | UL94 V-0 |
| Case Material | Nylon for Indoor Use, Foam Backing |
| Box Entry | Three 1/2" drill out ports, One 1/2" Open Port |
| Mounting & Weight | Four External Tabs (0.18lb or 0.082Kg) |
