| Quantity | Price | Stock |
|---|---|---|
| Starting at |
$0.01
/ea
|
Usually Ships in 1 - 2 Weeks
|

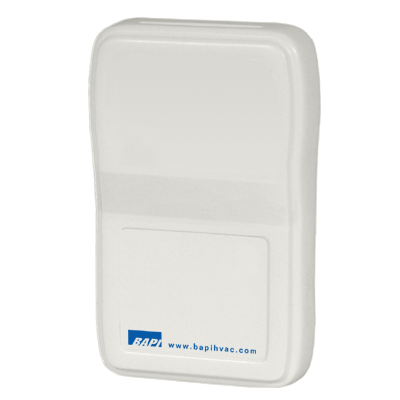

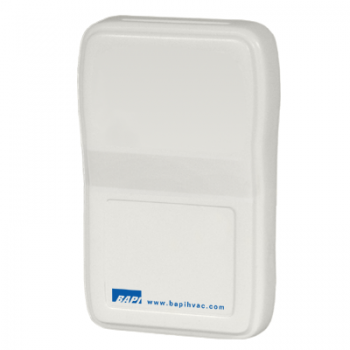

BAPI-Stat 4MB is a patented Modbus Room Sensor that measures humidity and/or temperature. The unit is available with an easy-to-read LCD display for easy monitoring. It shows temperature reading, setpoint adjustment, and the selected setpoint. For units with display, it features very straightforward pushbuttons.
BAPI also offers BS4MB room sensors with optional override and Fan Speed adjustment ideally for Fan Coils, Heat Pumps, or Unit Ventilators application.

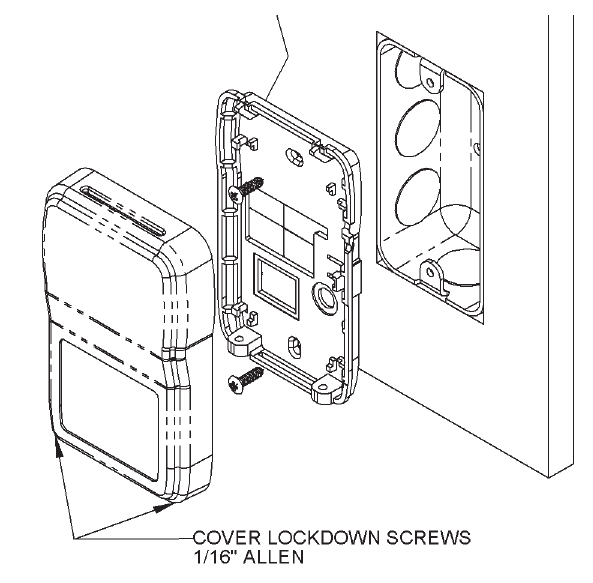

You can easily install the Modbus Room Sensor in a Junction Box or dry wall. To cover wall imperfections, purchase the BAPI Trim Ring to give off a neat and enhanced look of the sensors.
| Sensor Accuracy | Temperature: +/- 0.3C @ 20 to 40C (68 to 104F); %RH: +/- 2%RH @ 25C (77F), 20% to 80%RH |
|---|---|
| Wiring | 2 pair of 14 to 22 AWG |
| Mounting | Standard 2" x 4" J-Box or Drywall Mount (screws provided) |
| Environmental Operation Range (Temperature) | 32F to 122F (0C to 50C) |
| Environmental Operation Range (Humidity) | 0 to 95% non-condensing |
| Agency | RoHS and CE |
| Sensing Element | Thermistor or Semiconductor |
| Power Consumption | 7 mA max DC; 0.28 VA maximum AC |
| Power | 9 to 40 VDC (24 VDC nominal); 24 VAC +20%/-30% |
By Peter
from Ocala FL
No, I would not recommend this product to a friend or co-worker
We purchased over 2 years 7 or 8 of these units, however the last purchase caused us many problems in that the product damaged our Modbus network, we do not know why. The first 6 units we bought worked very well, but we will not be buying it again.
By Peter
from
Yes, I would recommend this product to a friend or co-worker
The product is simple to use, does basically all that is needed, we do not use the fan control because it is in steps and we have variable speed. Documentation is okay but could be improved and support do not know enough about the product, so we had to do some R&D to make it fit our needs.
