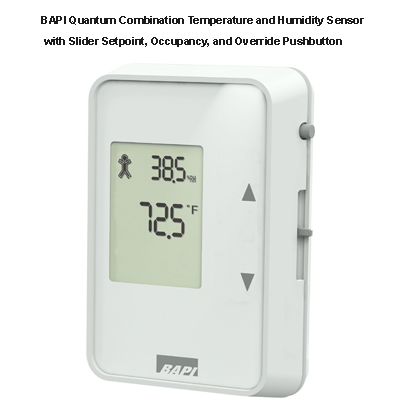

BAPI-Stat “Quantum” Humidity or Temperature/Humidity Sensor

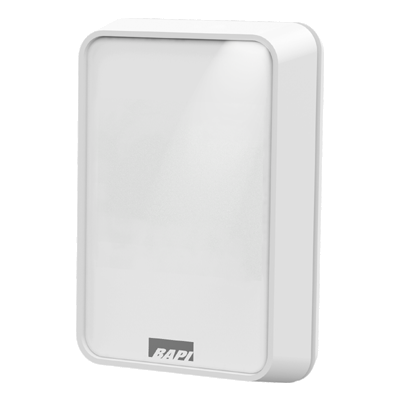

BAPI-Stat Quantum is a modern style humidity or temperature sensor, or a 2-in-1 humidity/temperature room sensor. It does feature a BAPI-Stat Quantum enclosure that looks best on any type of wall color.
BAPI offers no display or display feature. The LCD displays Fahrenheit or Celsius temperature, humidity, and room occupancy status. The display is high in contrast that makes it easy to read even at long distances.
You can configure the sensor according to your needs. Available with RTD or Thermistor sensor, optional communication jack, differential ground configuration, fan speed, and mode control.
Also, you can request a unit with standard mounting base that fits 2” x 4” junction boxes or a 60mm mounting base for European-style junction boxes.
| Power | 12 to 35 VDC for 4 to 20 mA or 0 to 5 VDC Output; 15 to 35 VDC for 0 to 10 VDC Output; 15 to 28 VAC for 0 to 5 VDC or 0 to 10 VDC Output |
|---|---|
| Temperature %RH Sensor Construction | Communicating Integrated Circuit |
| Field Calibration Adjustment | ±5% in 0.1% increments (Factory Calibrated) |
| Material & Rating | ABS Plastic, UL 94, V-0 |
| Wiring | 2 to 5 pair of 16 to 22 AWG |
| Optional Passive Temperature Sensor Accuracy | ±0.36°F Thermistor, ±0.5°F RTD (Higher accuracy available) |
| Mounting | Standard 2”x4” junction box, European junction box or drywall mount (screws provided) |
| Power Consumption | 20 mA max. for 4 to 20 mA Output; 4 mA max. for 0 to 5 VDC and 0 to 10 VDC Output; 0.1 VA max. for 0 to 5 VDC and 0 to 10 VDC Output |
| Environmental Operation Range | 32 to 122F (0 to 50C) • 0 to 95%, non-condensing |
| Agency | RoHS |
