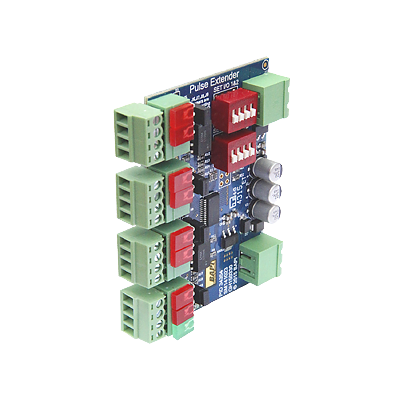

The BAPI BA/PE4 is a Pulse Extender that can extend the output in two ways and then split or divided. First, the pulse is extended to 100 ms, and secondly, the pulse is extended to 10 seconds.
Split: Take one input and then produce two isolated output pulses.
Divider: Takes the input pulse and divides it by 2, 4, 8, or 16 to create an output pulse with a lower frequency.
| Input Pulse Sensing Voltage | 5VDC |
|---|---|
| Output Pulse | Opto-isolated open collector (proper polarity is required) |
| Power Current | 125 mA Maximum |
| Power Voltage | 18 to 34VDC, 20 to 24VAC |
Download Product Information:
Pulse Extender, 4 Output Datasheet
Pulse Extender, 4 Output (ETA Module) Installation and Operation Instructions
