BAPI BA/RPT49-EA-EZ Wireless Temperature and/or Humidity Transmitter Repeater 418 MHz to 900 Mhz with Extendable Di-Pole Antenna

Name: BAPI BA/RPT49-EA-EZ Wireless Temperature and/or Humidity Transmitter Repeater 418 MHz to 900 Mhz with Extendable Di-Pole Antenna
Brand: BAPI
SKU: BA/RPT49-EA-EZ
Price: 256.70 USD
Availability: SoldOut

BAPI BA/RPT49-EA-EZ Wireless Temperature and/or Humidity Transmitter Repeater 418 MHz to 900 Mhz with Extendable Di-Pole Antenna

SKU: BA/RPT49-EA-EZ

Brand:

Rating:

Sold Out

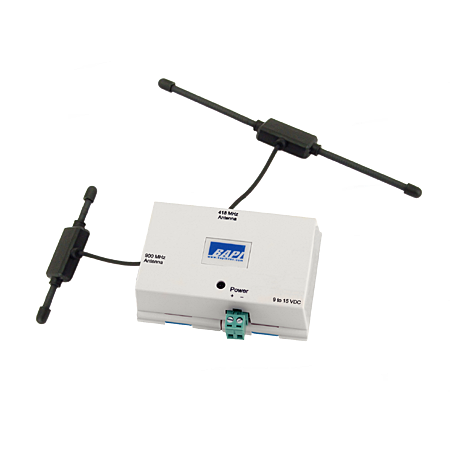

The BAPI BA/RPT49-EA-EZ Repeater with 79” Extendable Di-Pole Antenna receives data signal from the Wireless Temperature and/or Humidity Transmitter.

Also, the repeater re-transmits the signal into a BAPI Receiver and for every 20 seconds, there is a transmission of data signal happening. You can monitor the data transmission by checking the LED light indicator which blinks if there is a transmission every 20 seconds.

Aside from receiving and re-transmission of data signal, the repeater is designed to be used as an extender of transmitting range up to 1000 ft.

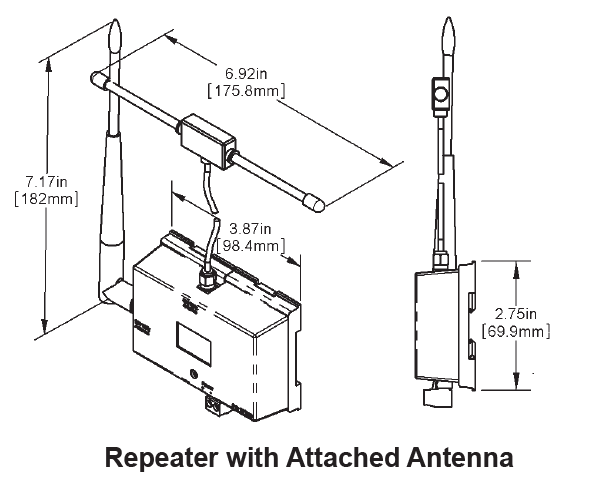

You can easily mount it in a 2.75 Wide Snaptrack, DIN Rail or surface.

Body Material	ABS Plastic
Supply Power	9 to 15 VDC
Power Consumption	150 mA Max DC
Operating Temperature Range	32°F to 140°F (0°C to 60°C)
Operating Humidity Range	5% to 95% RH non-condensing
Material Rating	UL94, V-0
Inputs	418MHz
Output	900MHz at 100mW

Download Product Information:

BAPI Wireless Temperature and/or Humidity Repeater Technical Datasheet

BAPI Wireless Repeater Installation Instructions
