| Quantity | Price | Stock |
|---|---|---|
| Starting at |
$32.03
/ea
|
Usually Ships 3 to 5 Days
|
Some devices require a certain voltage output and buying a new one to match the voltage may be more expensive for you. Having BAPI Voltage Converter is a practical way to reduce extra costs.

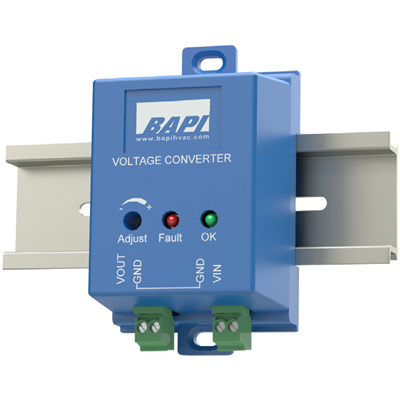

BAPI offers a series of VC350A-EZ Voltage Converter with an output of 350 mA. This is an ideal converter for use on peripheral devices that require DC voltage. The VC350A-EZ converts 24 VAC to 5, 10, 12, 15, or 24 VDC. Also, an adjustable voltage converter is available, it has an adjustable output of 5 to 24 VDC

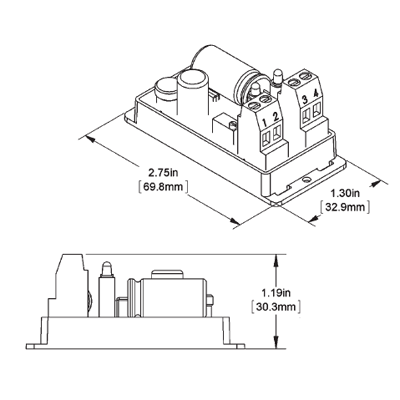

Easy to install on the surface, DIN rail, or in a 2.75" Wide Snaptrack.
| Environmental Operation Range (Humidity) | 0 to 95% RH non-condensing |
|---|---|
| Environmental Storage Range | -40F to 176F (-40C to 80C) |
| Wiring | 4 Wires, 16 to 22 gauge |
| Rectification | Half-Wave Rectified |
| Grounding | AC & DC Ground are Common |
| Recommended Input Voltage | 18 to 28 VAC, 24 VDC (15 VA) |
| Output Voltage | 5-24 VDC @ 350 mA |
Download Product Information:
