| Quantity | Price | Stock |
|---|---|---|
| Starting at |
$103.04
/ea
|
Usually ships in 2 - 3 Weeks
|

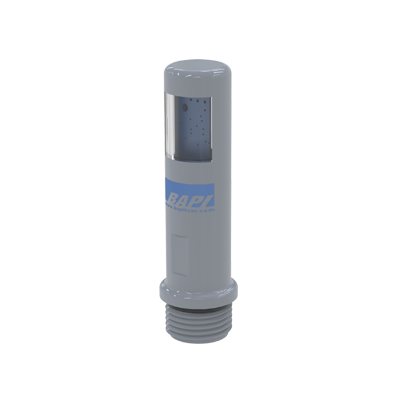

The BAPI Outdoor Light Level Sensor conserves energy by allowing lights to be shut off when the ambient light level exceeds a specified level. The sensor can also help ensure safety by allowing lights to be turned on when the ambient light falls below a specified level.
The unit comes in a rugged and watertight UV-inhibited polycarbonate enclosure with an IP66, NEMA 4 rating. The light level range is available as Foot Candle and Lux with 0 to 5V, 0 to 10V or 4 to 20 mA output. Custom ranges are also available.
• Available with Foot Candle or Lux Ranges
• Extremely Sensitive, Even in Dim Lighting (<10 Foot Candle or 108 Lux)
• Multiple Factory Selectable Light Level Ranges
• Rugged and Watertight Enclosure
| Accuracy | 10 Lux +/- 10% of Reading |
|---|---|
| Environmental Operation Range (Temperature) | -40F to 185F (-40C to 85C) |
| Environmental Operation Range (Humidity) | 0 to 100% non-condensing |
| Enclosure Material | UV-Inhibited Polycarbonate |
| Material Rating | UL94V-0 |
| Enclosure Rating | IP66, NEMA 4 |
| Factory Selectable Outputs | 0 to 5V, 0 to 10V, and 4 to 20 mA |
| Power Supply | 12 to 28 VDC, 22mA (for 0 to 5 VDC or 4 to 20 mA Outputs |
Download Product Information:
BAPI Outdoor Light Level Sensor Technical Datasheet
Outdoor Light Level Sensor Installation and Operating Instructions
By Toni
from
Yes, I would recommend this product to a friend or co-worker
We purchased this to use at a high end property and it works very well for our application. It was affordable and arrived very quickly!
Q & A: Ask the Questions, share answers
Do you have questions about this product?
