BAPI offers a selection of room-to-room pressure pickup ports designed to fit 1/8" I.D. to 5/32" I.D. Tubing. A sleek stainless steel Wall plate or a modern style BAPI-Stat “Quantum” enclosure pickup ports are available. These pickup ports are easy to install on a 2" x 4" standard electrical junction box.

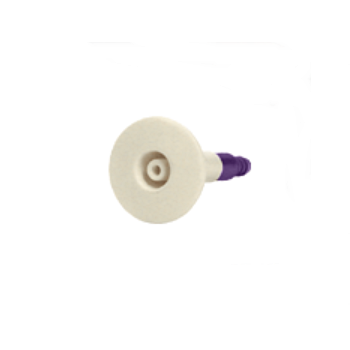

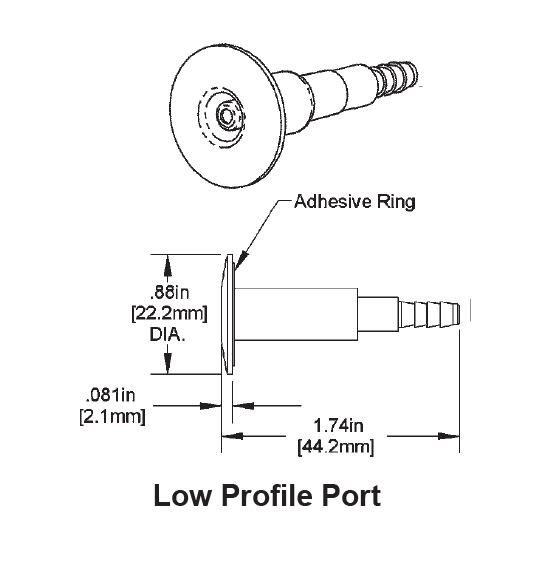

Smaller size options are also available, Ceiling Mount Square Cover which fits a 3/4” thick suspended ceiling tile electrical box and a 0.88" round Low Profile Port that only takes up 7/8" dot on your wall. Inclusive of 80 Micron Sintered SS Filter.
| Environmental Operating Range (Humidity) | -40 to 185ºF (-40 to 85ºC), 0% to 100% RH non-condensing |
|---|---|
| Environmental Operating Range (Temperature) | -40F to 185F (-40C to 85C) |
| Material | ABS Plastic UL94 V-0 |
Download Product Information:
BAPI Room Pressure Pickup Ports Technical Datasheet
BAPI ZPS-ACC20 Low Profile Pressure Pickup Port Installation Instructions
