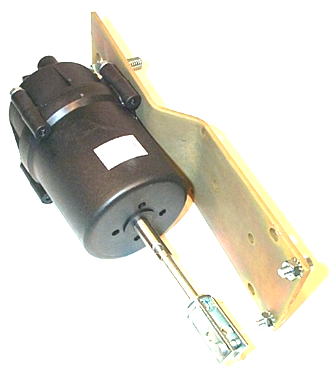

Barber Colman (Schneider Electric) M573-5520 Pneumatic Damper Actuator 8-13 PSI

Barber Colman (Schneider Electric) M573-5520 Pneumatic Damper Actuator 8-13 PSI
Images for general purposes only. Actual may be different than depicted.
Barber Colman (Schneider Electric) M573-5520 Pneumatic Damper Actuator 8-13 PSI

Barber Colman (Schneider Electric) M573-5520 Pneumatic Damper Actuator 8-13 PSI

SKU: M573-5520
Rating:
Quantity Price Stock
Usually Ships 1 Week
Usually Ships 1 Week
$264.30     /ea
Usually Ships 1 Week
0
$0.00
0
$0.00
0
M573-5520
Schneider Electric (Barber Colman) Piston Damper Actuators

The M573 Series Piston Damper Actuators are used in pneumatic control systems to position automatic air dampers upon receipt of an air pressure signal from a control device. These actuators can be used for either proportional or two position applications. The M573 actuators are equipped with right angle brackets and are adaptable to air conditioning, multi-zone, heating, ventilating, fan coil units, unit ventilators, and mixing boxes.
Housing Material Glass Filled Nylon
Diaphragm Neoprene, rolling type
Spring Retract actuator shaft on loss of air pressure
Ambient Temperature Range -20F to 140F (-29C to 60C)
Supply Air Pressure Clean, dry, oil free air required
Nominal Pressure Limit 20 PSIG (138 kPa)
Maximum Pressure 30 PSIG (207 kPa)
Air Consumption (Position Models) 0.017 scfm
Connections Barbed fitting for 1/4" O.D. plastic tubing

Download Product Information:

Baber Colman M573 Actuator General Instructions
