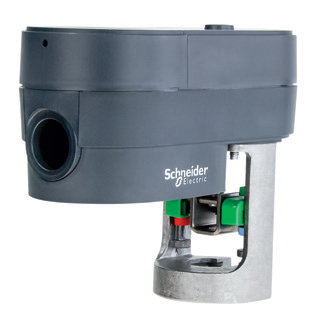

Barber Colman (Schneider Electric) MG350V-24M Actuator 24V Non-Spring Return

Name: Barber Colman (Schneider Electric) MG350V-24M Actuator 24V Non-Spring Return
Brand: Barber-Colman
SKU: MG350V-24M
Price: 150.71 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Barber Colman (Schneider Electric) MG350V-24M Actuator 24V Non-Spring Return

SKU: MG350V-24M

Brand:

Rating:

Quantity	Price	Stock
2 Usually Ships 1 Week	$150.71 /ea	2

Buy in Bulk & Save

Quantity	Price
5+	$143.18 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

MG350V Globe Valve SmartX Actuator

MG350V globe valve actuators are non-spring return electromechanical actuators for the control of two-way and three-way globe valves for fan coils, unit ventilators, reheat, cooling units,
perimeter heating, and other applications. Proportional, Floating, and Pulse Width Modulated (PWM) models are available for direct mounting on 1/2” … 2” VB-7000 globe valves. The MG350V actuators are also compatible with older field-installed 1/2” … 1-1/4” VB-9000 globe valves as well as other valves (with the addition of AV-800 Globe Valve Adapters).

Features

Bi-color LED status indication for motion indication, autocalibration, and alarm notification
Auto-calibration provides precise control by scaling the input signal to match the exact travel of the valve stem
Proportional models with and without a position output signal with field selectable 2 … 10 Vdc and 0 … 10 Vdc input signals and selectable input signal action (reverse or direct acting)
Floating and two-position models available with and without a position output signal
Pulse width modulated (PWM) models with field selectable 0.59 … 2.93 sec and 0.1 … 25.5 sec input signal ranges with a position output signal
Stall protected throughout stroke
Manual override with automatic release
Position feedback output signal models include field selectable 2 … 10 Vdc or 0 … 5 Vdc output signal
Removable wiring screw terminal with 1/2” conduit opening
Integral linkage and self-adjusting valve position indicator

Input Signal	2 â€¦ 10 Vdc, 0 â€¦ 10 Vdc (Field Selectable)
Timing for 1/2" Stroke	102 seconds
Maximum Stroke	21/32" (16.5 mm)
Force	78 lbf (350 N)
Approvals	CE, UL, EAC

Download Product Information:

Erie MG350V Globe Valve SmartX Actuator Installation Instructions

Eries Globe Valve Selection Guide for MG350V SmartX Actuators

Erie MG350V Globe Valve SmartX Actuator Tech Sheet
