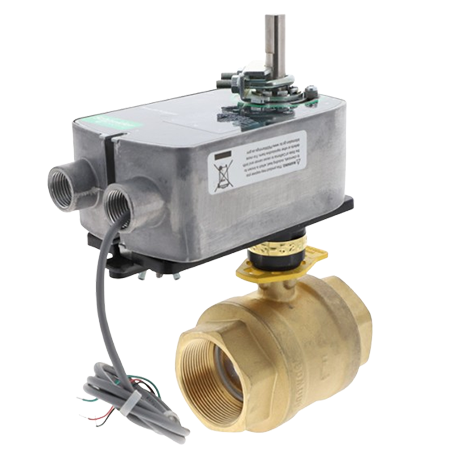

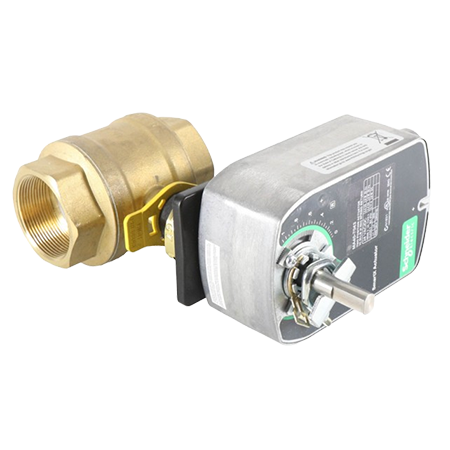

The VA-2253-526-9-67 is a two-way ball valve with an actuator that operates at 24V.  It has a 2" NPT connection size, 1/2" conduit size, 70 psi (482.63 kPa) close-off pressure, and 266 Cv flow capacity with a stainless steel trim construction.  UL-listed and CE-marked.

The normally closed two-position ball valve is suitable for hot/chilled water, or solutions up to 50% glycol applications.  The unit is used to control the flow of fluids by opening or closing by opening or closing the valve using the actuator.  It features spring return type actuator that accepts two-position, floating, or proportional control from a DDC system or thermostat.

The MA40-7043 spring return actuator and VB-2253-500-9-67 ball valve replacement part are also available.

The VA-2253-526-9-67 directly replaces part number VA-2213-526-9-67.
