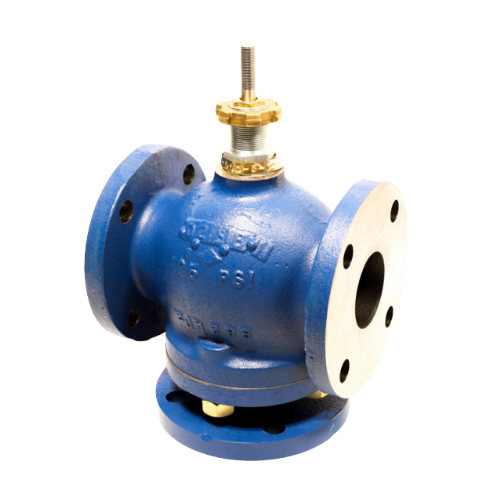

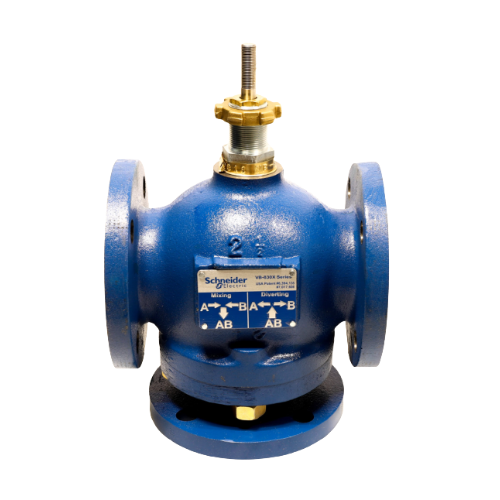

Barber Colman (Schneider Electric) VB-8303-0-5-12 Flanged 3-Way Diverting Valve Cast Iron 2-1/2" 56Cv

Barber Colman (Schneider Electric) VB-8303-0-5-12 Flanged 3-Way Diverting Valve Cast Iron 2-1/2" 56Cv
Images for general purposes only. Actual may be different than depicted.
Barber Colman (Schneider Electric) VB-8303-0-5-12 Flanged 3-Way Diverting Valve Cast Iron 2-1/2" 56Cv Barber Colman (Schneider Electric) VB-8303-0-5-12 Globe Valve 3-Way Barber Colman (Schneider Electric) VB-8303-0-5-12 Cast Iron Globe Valve with Brass Trim

Barber Colman (Schneider Electric) VB-8303-0-5-12 Flanged 3-Way Diverting Valve Cast Iron 2-1/2" 56Cv

SKU: VB-8303-0-5-12
Rating:
Quantity Price Stock
2
Usually Ships 2 - 4 Weeks
$1,113.42     /ea
2

Shipping Note

Ships via LTL ( Truck )

The VB-8303-0-5-12 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Barber Colman (Schneider Electric) RYB-830-12 Repair Kit For VB-8303-0-5-12 RYB-830-12

Brand Barber-Colman
Barber Colman (Schneider Electric) RYB-830-12 Repair Kit For VB-8303-0-5-12
0
$0.00
0
$0.00
0
VB-8303-0-5-12
The VB-8303-0-5-12 is a flanged three-way diverting flanged that has a 2-1/2" valve connection size.  It has a 125 psi rating and 35 psi (241 kPa) close-off with a 200 psi maximum pressure.

The diverting valve is suitable for chilled or hot water applications in heating or air conditioning systems.  The unit is used for two-position or proportional control with a self-adjusting spring-loaded cast iron body that provides excellent performance and durability.

The VB-8303-0-5-12 is easy to install with a flanged end fitting.  The RYB-830-12 repair kit and YBA-652-2 packing gland assembly accessories are also available.
Allowable Control Media Temperature 20 to 281 °F (-7 to 138 °C)
Type of End Fitting 125 PSI Flanged
Flow Characteristics Modified Linear (may be piped as Mixing or Diverting)
Service Chilled or Hot Water
Close-off Pressure 35 psi (241 kPa)
Body Material Cast Iron
Valve Size 2-1/2"
Seat Material Forged Brass
Stem Material Stainless Steel
Packing Material Spring-loaded TFE/EPDM
